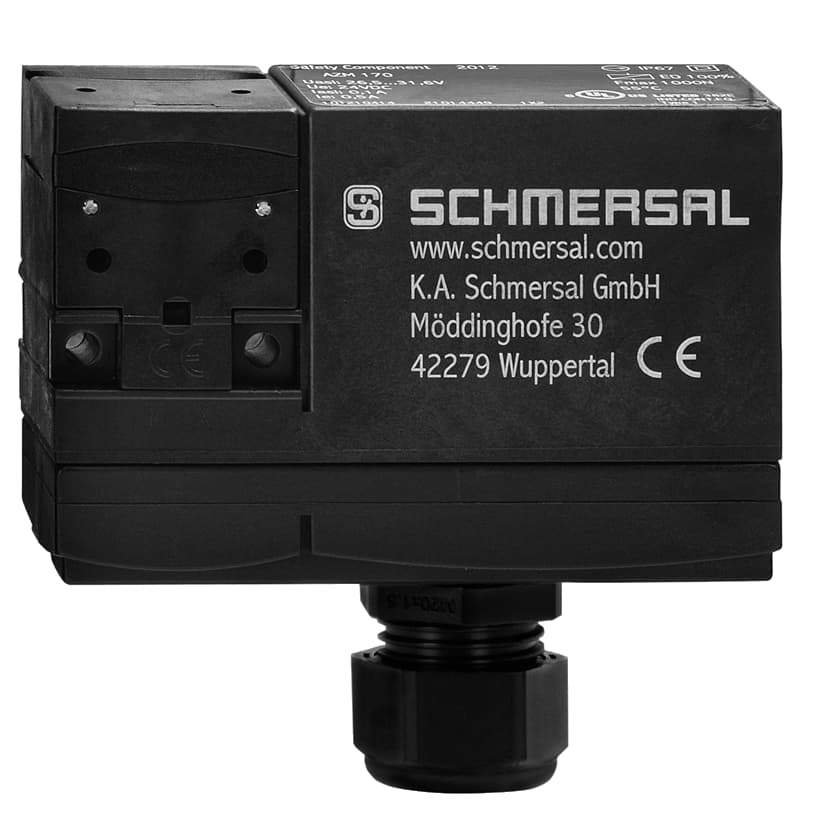

AZM 170-11ZRKA 230VAC Schmersal Safety Switch Interlocks
Part#:AZM 170-11ZRKA 230VAC
Manufacturer:Schmersal
Alt. Part#:101136319
Product Lifecycle:Active
Get a quick Quote!
Solenoid interlocks; 1 Cable entry M 20 x 1.5; IDC method of termination; Manual release; Thermoplastic enclosure; Double-insulated; Compact design; 90 mm x 84 mm x 30 mm; Interlock with protection against incorrect locking.; Long life; High holding force
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switch Interlocks that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 170-11ZRKA 230VAC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Voltage, Utilisation category AC15 230 VAC
- Rated impulse withstand voltage Uimp 4 kV
- Current, Utilisation category DC13 4 A
- Voltage, Utilisation category DC13 24 VDC
- Current, Utilisation category AC-15 4 A
- Switching frequency 1,000 /h
- Switching principle Creep circuit element
- Switching element NO contact, NC contact
- Rated control voltage 230 VAC
- Electrical power consumption, maximum 10 W
- Note (Switching element) Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
- Utilisation category AC-15 230 VAC
- Thermal test current 6 A
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Rated insulation voltage Ui 250 V
- Ambient temperature, maximum +60 °C
- Cable section, minimum 1 x 0.75 mm²
- Width of sensor 90 mm
- Cable section, maximum 1 x 1.0 mm², flexible
- Ambient temperature, minimum -25 °C
- Length of sensor 30 mm
- Degree of protection IP67 to EN 60529
- Height of sensor 84 mm
- Terminal Connector IDC method of termination
- Positive break force, minimum 8.5 N
- Actuating speed, maximum 2 m/s
- Latching force 30 N
- Clamping force in accordance with ISO14119 Fzh 1,000 N
- positive break travel 11 mm
- Number of safety contacts 1
- Mechanical life, minimum 1,000,000 Operations
- Coding level according to ISO 14119 Low
- Number of auxiliary contacts 1
- Standards EN 60947-5-1, BG-GS-ET-19
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Material of the contacts, electrical Silver
- Active principle electromechanical
- Number of actuating directions 2
- Power to lock Yes
- Gross weight 320 g
- Manual release Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents AZM 170-11ZRKA 230VAC Specs
