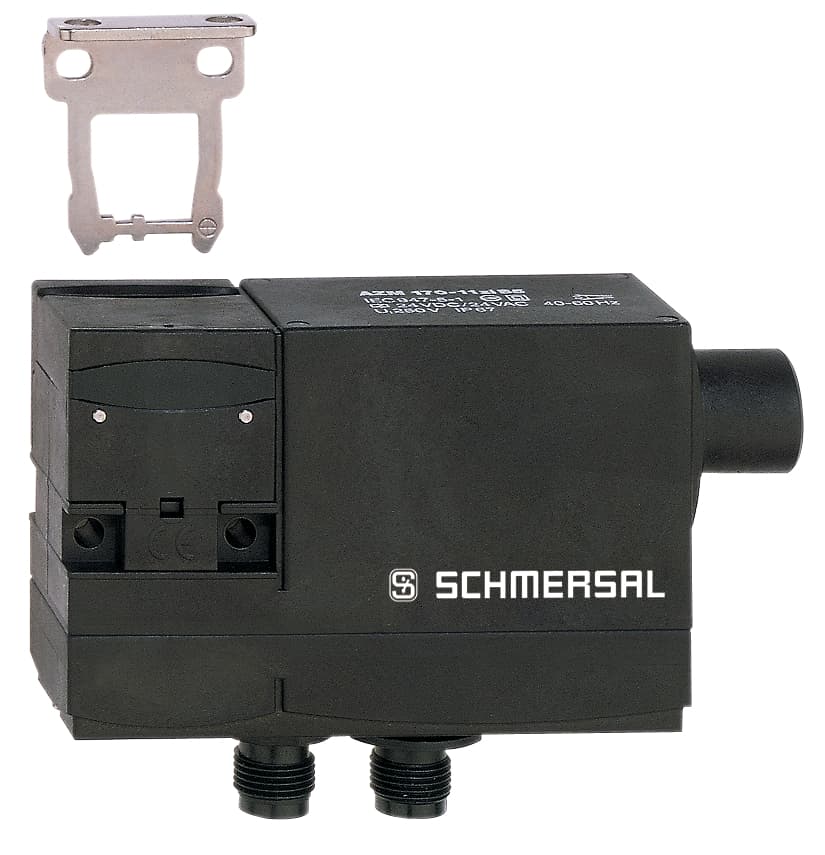

AZM 170-11ZRI-ST-B6L-2197 24VAC/DC Schmersal Safety Switch Interlocks

Product Details

• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  4 A
• Current, Utilisation category AC-15
  4 A
• Voltage, Utilisation category AC15
  230 VAC
• Switching principle
  Creep circuit element
• Switching frequency
  1,000 /h
• Note (Switching element)
  Change-over contact with double break, type Zb or 2 NC or 3 NC or 4 NC contacts, with galvanically separated contact bridges
• Switching element
  NO contact, NC contact
• Rated control voltage
  24 VAC/DC
• Rated impulse withstand voltage Uimp
  2.5 kV
• Rated insulation voltage Ui
  250 V
• Thermal test current
  4 A
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Electrical power consumption, maximum
  10 W
• Ambient temperature, maximum
  +60 °C
• Width of sensor
  108 mm
• Degree of protection
  IP67 to EN 60529
• Positive break force, minimum
  8.5 N
• Mechanical life, minimum
  1,000,000 Operations
• Ambient temperature, minimum
  -25 °C
Actuating speed, maximum
2 m/s
Terminal Connector
Connector plug M12, 4-pole, (A-coding), Connector plug M12, 4-pole, (B-coding)
Length of sensor
30 mm
Height of sensor
75.5 mm
Number of actuating directions
2
Actuating radius, minimum
50 mm
Latching force
30 N
positive break travel
11 mm
Clamping force in accordance with ISO14119 Fzh
1,000 N
Number of auxiliary contacts
1
Number of safety contacts
1
Manual release
Yes
Material of the actuator
Stainless steel
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Standards
EN 60947-5-1, BG-GS-ET-19
Coding level according to ISO 14119
High
Power to unlock
Yes
general information
Individual coding
Gross weight
305 g
Active principle
electromechanical
Material of the contacts, electrical
Silver

Related documents AZM 170-11ZRI-ST-B6L-2197 24VAC/DC Specs
