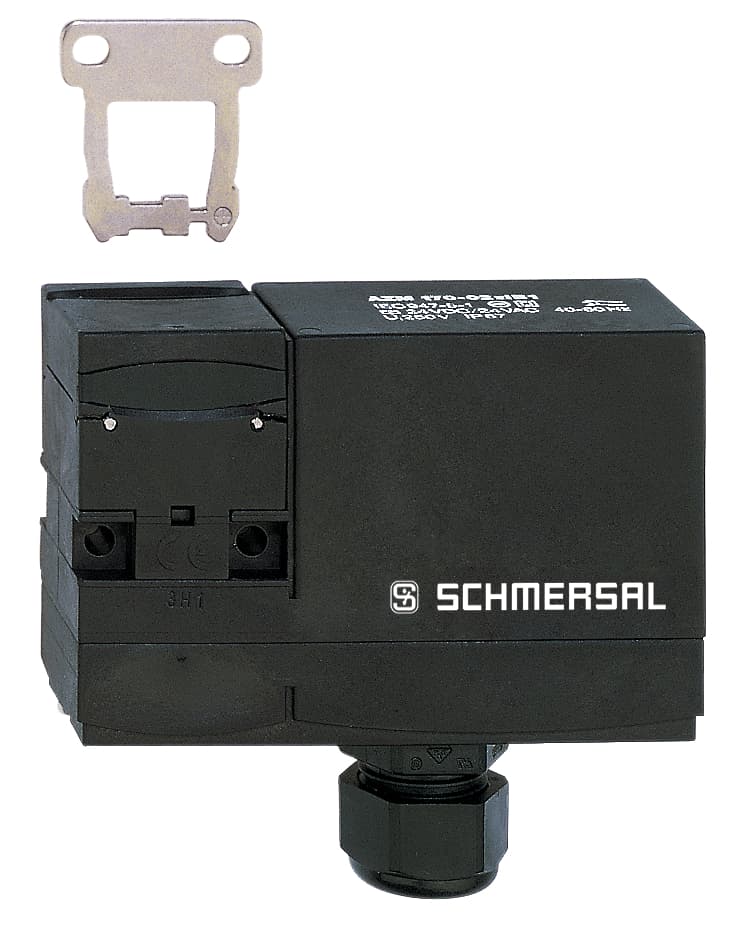

AZM 170-02ZRI-B5 24VAC/DC Schmersal Safety Switch Interlocks

Product Details

• Current, Utilisation category DC13
  4 A
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category AC-15
  4 A
• Switching frequency
  1,000 /h
• Voltage, Utilisation category AC15
  230 VAC
• Switching principle
  Creep circuit element
• Note (Switching element)
  Change-over contact with double break, type Zb or 2 NC or 3 NC or 4 NC contacts, with galvanically separated contact bridges
• Electrical power consumption, maximum
  10 W
• Rated control voltage
  24 VAC/DC
• Switching element
  Opener (NC)
• Thermal test current
  6 A
• Rated insulation voltage Ui
  250 V
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Rated impulse withstand voltage Uimp
  4 kV
• Ambient temperature, maximum
  +60 °C
• Ambient temperature, minimum
  -25 °C
• Degree of protection
  IP67 to EN 60529
• Length of sensor
  30 mm
• Height of sensor
  84 mm
• Cable section, minimum
  1 x 0.75 mm²
Width of sensor
90 mm
Cable section, maximum
1 x 1.0 mm², flexible
Actuating speed, maximum
2 m/s
Terminal Connector
IDC method of termination
Mechanical life, minimum
1,000,000 Operations
Clamping force in accordance with ISO14119 Fzh
1,000 N
Positive break force, minimum
17 N
positive break travel
11 mm
Latching force
30 N
Actuating radius, minimum
140 mm
Coding level according to ISO 14119
High
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Number of safety contacts
2
Standards
EN 60947-5-1, BG-GS-ET-19
Gross weight
290 g
Number of actuating directions
2
Material of the actuator
Stainless steel
Active principle
electromechanical
Manual release
Yes
Power to unlock
Yes
Material of the contacts, electrical
Silver
general information
Individual coding

Related documents AZM 170-02ZRI-B5 24VAC/DC Specs
