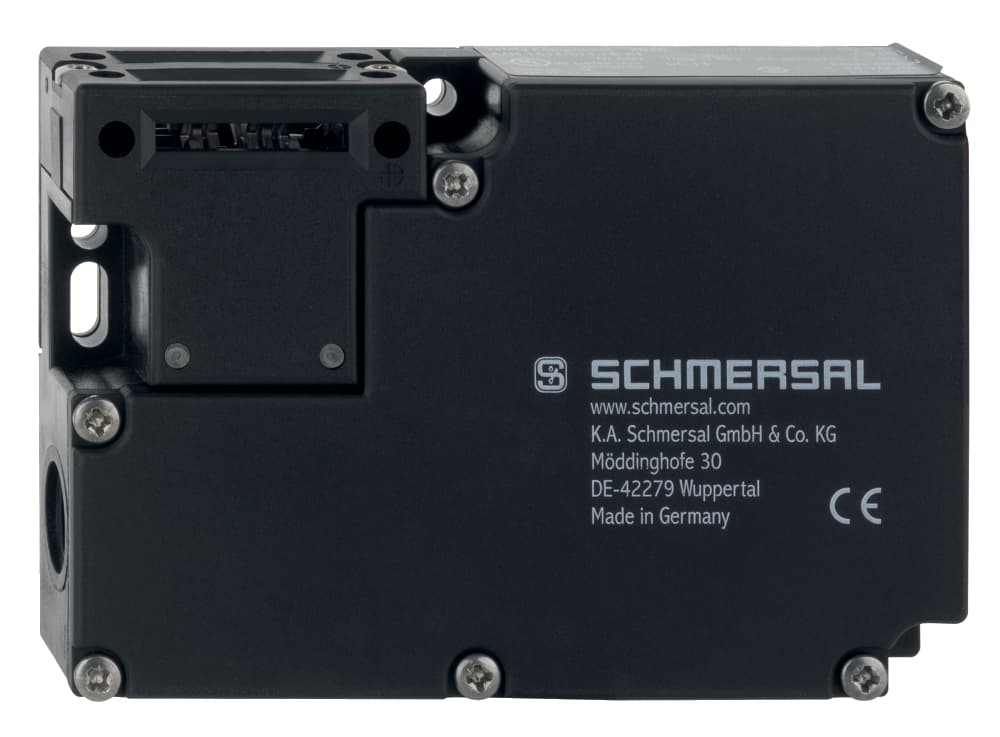

AZM 161SK-12/12RK-024G Schmersal Safety Switch Interlocks

Product Details

• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  2.5 A
• Voltage, Utilisation category AC15
  230 VAC
• Current, Utilisation category AC-15
  4 A
• Switching frequency
  1,000 /h
• Switching principle
  Creep circuit element
• Electrical power consumption, maximum
  10 W
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Rated insulation voltage Ui
  250 V
• Thermal test current
  6 A
• Switching element
  NO contact, NC contact
• Ambient temperature, maximum
  +60 °C
• Rated impulse withstand voltage Uimp
  4 kV
• Ambient temperature, minimum
  -25 °C
• Degree of protection
  IP67 to EN 60529
• Cable section, minimum
  1 x 0.25 mm²
• Length of sensor
  30 mm
• Cable section, maximum
  1 x 1.5 mm²
• Height of sensor
  90 mm
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
Width of sensor
130 mm
Terminal Connector
Screw terminals
Positive break force, minimum
20 N
Number of LEDs
3
positive break travel
10 mm
Latching force
30 N
Clamping force in accordance with ISO14119 Fzh
2,000 N
Actuating speed, maximum
2 m/s
Mechanical life, minimum
1,000,000 Operations
Actuating play in direction of actuation
5.5 mm
Number of safety contacts
4
Gross weight
450 g
Manual release
Yes
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Number of actuating directions
3
Coding level according to ISO 14119
Low
Active principle
electromechanical
Material of the contacts, electrical
Silver
Standards
EN 60947-5-1, BG-GS-ET-19
Number of auxiliary contacts
2
