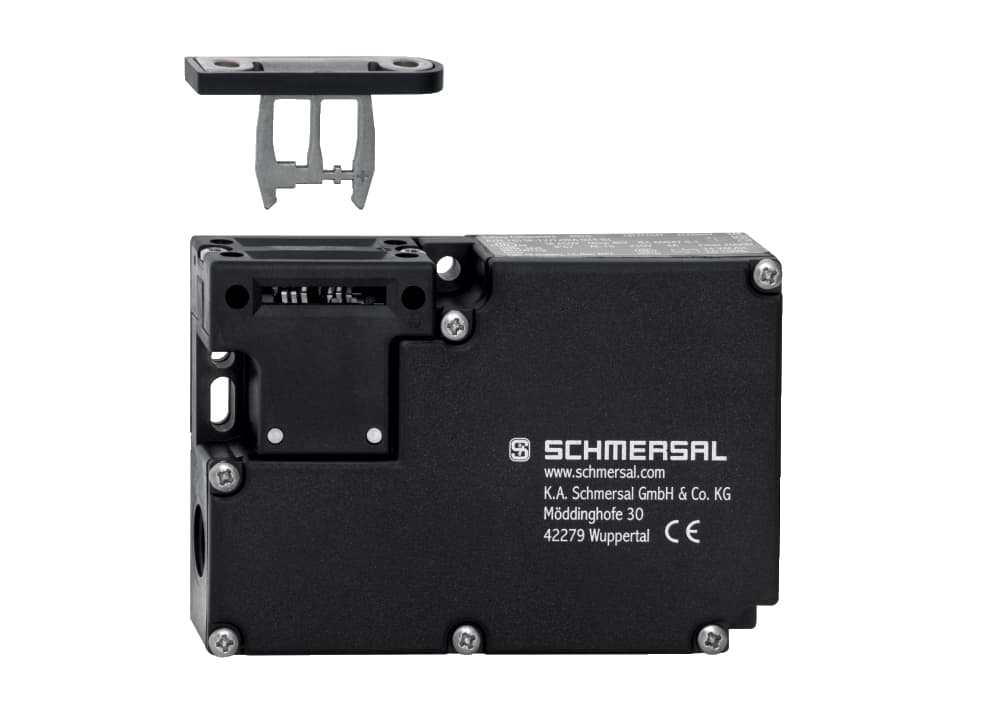

AZM 161SK-12/12RITU-024- B6R Schmersal Safety Switch Interlocks
Part#:AZM 161SK-12/12RITU-024- B6R
Manufacturer:Schmersal
Alt. Part#:101215899
Product Lifecycle:Active
Get a quick Quote!
Solenoid interlocks; AZM 161I; 1 Cable entry M 20 x 1.5; Screw connection; Manual release, lateral; Emergency exit, rear; right-hand model; Compact design; For very smal actuating radii in line with or at 90° to the plane of the actuator; Interlock with p
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switch Interlocks that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 161SK-12/12RITU-024- B6R Schmersal price in the box on the right side or send a quick quote.
Product Details
- Current, Utilisation category DC13 2.5 A
- Voltage, Utilisation category AC15 230 VAC
- Voltage, Utilisation category DC13 24 VDC
- Current, Utilisation category AC-15 4 A
- Switching element NO contact, NC contact
- Switching frequency 1,000 /h
- Switching principle Creep circuit element
- Electrical power consumption, maximum 10 W
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Rated control voltage 24 VAC/DC
- Thermal test current 6 A
- Ambient temperature, maximum +60 °C
- Rated insulation voltage Ui 250 V
- Rated impulse withstand voltage Uimp 4 kV
- Ambient temperature, minimum -25 °C
- Degree of protection IP67 to EN 60529
- Cable section, minimum 1 x 0.25 mm²
- Height of sensor 90 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Actuating speed, maximum 2 m/s
- Cable section, maximum 1 x 1.5 mm², flexible
- Terminal Connector Screw terminals
- Width of sensor 130 mm
- Length of sensor 30 mm
- Positive break force, minimum 20 N
- Actuating radius, minimum 95 mm
- positive break travel 10 mm
- Number of safety contacts 4
- Clamping force in accordance with ISO14119 Fzh 2,000 N
- Power to lock Yes
- Manual release Yes
- Latching force 30 N
- Coding level according to ISO 14119 High
- Mechanical life, minimum 1,000,000 Operations
- Number of actuating directions 3
- Active principle electromechanical
- Number of auxiliary contacts 2
- Emergency exit Yes
- general information Individual coding
- Standards EN 60947-5-1, BG-GS-ET-19
- Gross weight 525 g
- Material of the actuator Stainless steel
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Material of the contacts, electrical Silver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
