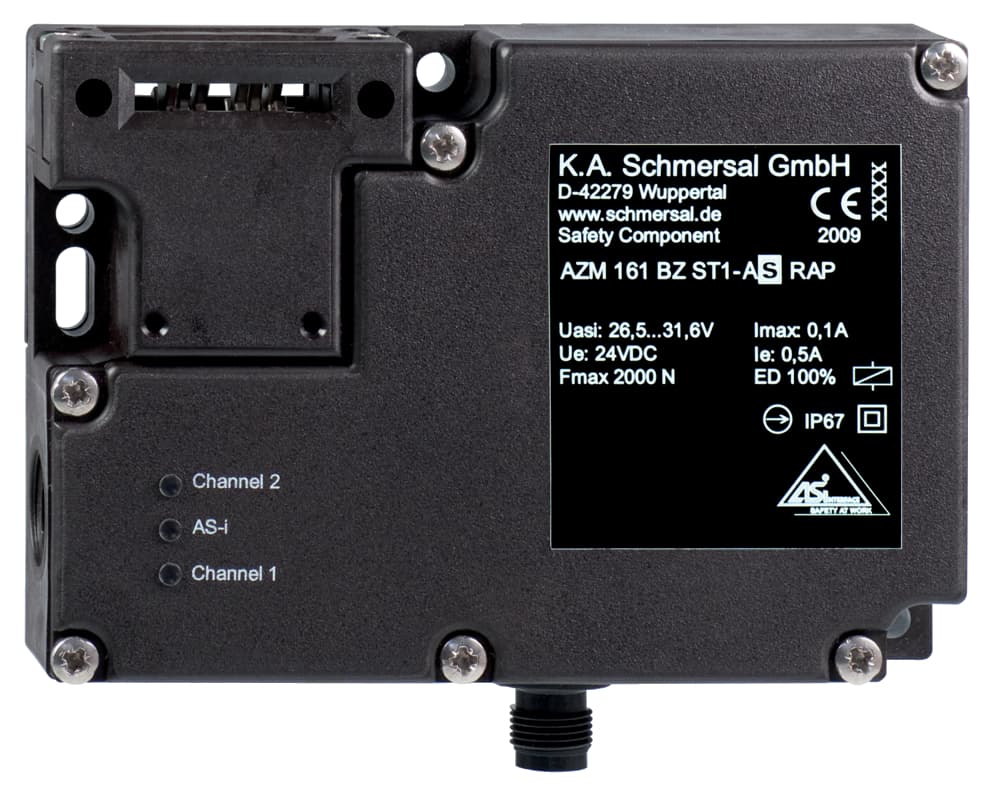

AZM 161 Z ST2-AS RP Schmersal Safety Switch Interlocks

Product Details

• AS-i Input module address
  0
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• Operating current
  500 mA
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• AS-i Parameter bits, P3
  Error message - locking/unlocking of the solenoid interlock blocked
• AS-i Parameter bits, P0
  Actuator detected
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• AS-i Parameter bits, P1
  Solenoid interlock locked
• AS-i Outputs, DO 1
  No Function
• AS-i Outputs, DO 2
  No Function
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Outputs, DO 3
  No Function
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i, ID-Code1
  0xF
• AS-i Version
  V 2.1
• AS-i, ID-Code2
  0xE
• AS-i, ID-Code
  0xB
• AS-i Current consumption, maximum
  100 mA
AS-i, IO-Code
0x7
AS-i Profile
S-7.B.F.E
AS-i Specification
Safety-Slave
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Operating voltage, minimum
26.5 VDC
Switching frequency
1,000 /h
Restistance to shock
30 g / 11 ms
Rated insulation voltage Ui
32 VDC
Degree of pollution to VDE 0100
3
Protection rating
II
Rated impulse withstand voltage Uimp
0.8 kV
Overvoltage category
III
Relative humidity, maximum
95 %
Resistance to vibrations to EN 60068-2-6
10 Hz ... 150 Hz, amplitude 0.35 mm
Note (Relative humidity)
non-condensing, non-icing
Relative humidity, minimum
30 %
Storage and transport temperature, maximum
+85 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
-25 °C
Ambient temperature, maximum
+60 °C
Degree of protection
IP67 to EN 60529
Connector position
Right
Length of sensor
30 mm
Height of sensor
90 mm
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Actuating speed, maximum
2 m/s
Latching force
30 N
Width of sensor
130 mm
Clamping force
2,000 N
Guard locking monitored
Yes
Actuating play in direction of actuation
5.5 mm
Mechanical life, minimum
1,000,000 Operations
Standards
IEC 61508, EN 60947-5-1, EN 62026-2
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight
450 g
Manual release
Yes
Power to unlock
Yes
Integral System Diagnostics, status
Yes
Active principle
electromechanical
Number of actuating directions
3
Reaction time, maximum
100 ms
