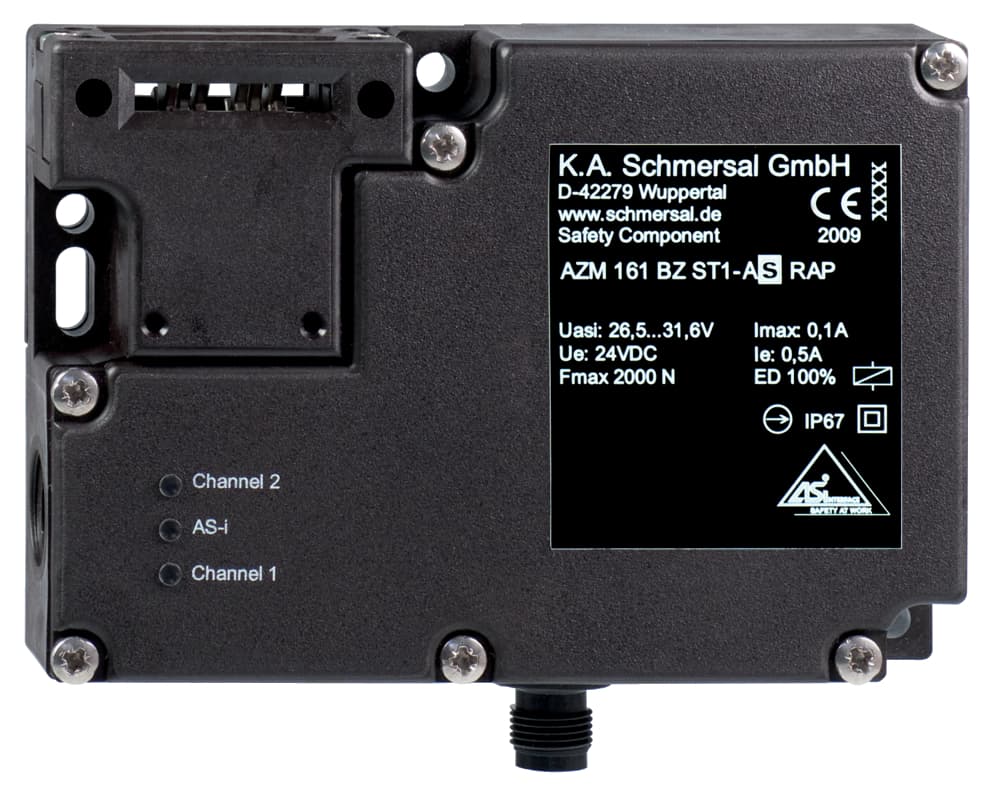

AZM 161 Z ST2-AS R Schmersal Safety Switch Interlocks

Product Details

• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• AS-i Input module address
  0
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• AS-i Parameter bits, P1
  Solenoid interlock locked
• AS-i Parameter bits, P3
  Error message - locking/unlocking of the solenoid interlock blocked
• AS-i Outputs, DO 1
  No Function
• AS-i Outputs, DO 3
  No Function
• AS-i Parameter bits, P0
  Actuator detected
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Outputs, DO 2
  No Function
• AS-i Outputs, DO 0
  Solenoid control
• AS-i, ID-Code2
  0xE
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i, ID-Code1
  0xF
• AS-i, ID-Code
  0xB
• AS-i, IO-Code
  0x7
• AS-i Profile
  S-7.B.F.E
• AS-i Version
  V 2.1
• AS-i Specification
  Safety-Slave
AS-i Current consumption, maximum
250 mA
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Operating voltage AS-i maximum
31.6 VDC
Switching frequency
1,000 /h
AS-i Operating voltage, minimum
26.5 VDC
Overvoltage category
III
Degree of pollution to VDE 0100
3
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Protection rating
II
Relative humidity, maximum
95 %
Resistance to vibrations to EN 60068-2-6
10 Hz ... 150 Hz, amplitude 0.35 mm
Restistance to shock
30 g / 11 ms
Note (Relative humidity)
non-condensing, non-icing
Relative humidity, minimum
30 %
Storage and transport temperature, maximum
+85 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, maximum
+60 °C
Degree of protection
IP67 to EN 60529
Ambient temperature, minimum
-25 °C
Width of sensor
130 mm
Height of sensor
90 mm
Actuating play in direction of actuation
5.5 mm
Connector position
Right
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Length of sensor
30 mm
Clamping force
2,000 N
Latching force
30 N
Actuating speed, maximum
2 m/s
Mechanical life, minimum
1,000,000 Operations
Number of actuating directions
3
Standards
IEC 61508, EN 60947-5-1, EN 62026-2
Manual release
Yes
Gross weight
480 g
Reaction time, maximum
100 ms
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Power to unlock
Yes
Integral System Diagnostics, status
Yes
Guard locking monitored
Yes
Active principle
electromechanical
