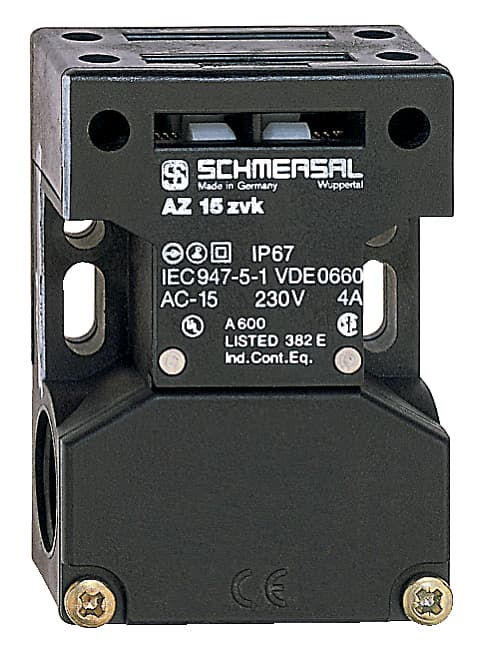

AZ 15 ZVRK-M20 Schmersal Safety Switches

Product Details

• Material of the contacts, electrical
  Silver
• Suitable for elevators
  Yes
• Mechanical life, minimum
  1,000,000 Operations
• Number of safety contacts
  1
• Current, Utilisation category DC13
  4 A
• Voltage, Utilisation category DC13
  24 VDC
• Gross weight
  95 g
• Latching force
  30 N
• positive break travel
  8 mm
• Current, Utilisation category AC-15
  4 A
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Voltage, Utilisation category AC15
  230 VAC
• Switching principle
  Creep circuit element
• Ambient temperature, maximum
  +80 °C
• Switching element
  Opener (NC)
• Rated impulse withstand voltage Uimp
  6 kV
• Thermal test current
  10 A
• Rated insulation voltage Ui
  500 V
• Ambient temperature, minimum
  -30 °C
• Degree of protection
  IP67 to EN 60529
Height of sensor
75 mm
Width of sensor
52 mm
Length of sensor
30 mm
Cable section, maximum
2.5 mm²
Cable section, minimum
0.25 mm²
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Terminal Connector
Screw connection
Actuating speed, maximum
2 m/s
Positive break force, minimum
10 N
Coding level according to ISO 14119
Low
