A-K8P-M8-S-W-10M-BK-2-X-A-4 Schmersal Cable Assemblies
Part#:A-K8P-M8-S-W-10M-BK-2-X-A-4
Alt. Part#:103003643
Manufacturer:Schmersal
Category:Cable Assemblies
Product Lifecycle:Active
Product description

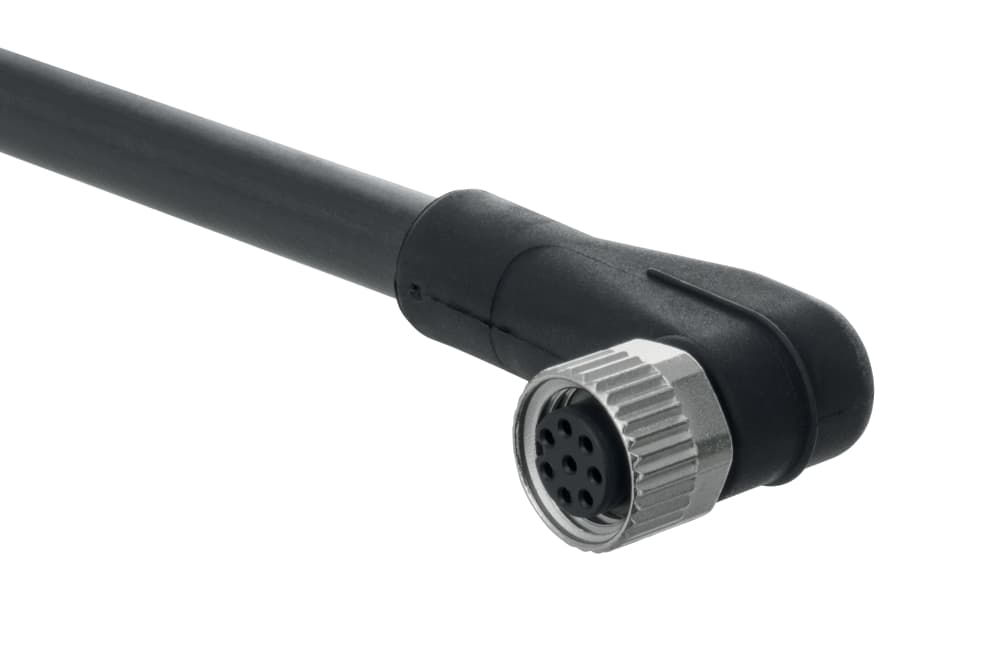

A-K8P-M8-S-W-10M-BK-2-X-A-4 Schmersal - Safety sensors; Electronic safety sensors; Pre-wired cable; 8-pole
Product Details
- Operating current 1,500 mA
- Thermal test current 1.5 A
- Rated operating voltage 30 V
- Temperature (repeated), minimum -25 °C
- Temperature (fixed), maximum +90 °C
- Temperature (repeated), maximum +90 °C
- Temperature (fixed), minimum -50 °C
- Ambient temperature, maximum (Connector) +85 °C
- Ambient temperature, minimum (Connector) -25 °C
- Degree of protection IP67
- Material of the handle Plastic, PUR
- Material of the gland Metal, CuZn, nickel-plated
- Connector latching Screw locking
- Colour of the handle Black
- Connector coding A
- Design angled
- Connector typ Female connector, M8
- Colour of the Cable mantle Black
- Material of the Cable mantle PUR
- Cable diameter 6 mm
- Bending radius (repeated) 10 x Ø-cable
- Length of cable 10 m
- Halogen free Yes (1)
- Gross weight 480 g
- Number of cable wires 8
- Number of poles 8
- Bending radius (fixed) 5 x Ø-cable
- Wire cross-section 0.25 mm2
- Tightening torque, maximum 0.6 Nm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
