A-K8P-M12-S-G-15M-GY-1-X-A-4 Schmersal Cable Assemblies
Part#:A-K8P-M12-S-G-15M-GY-1-X-A-4
Alt. Part#:103011787
Manufacturer:Schmersal
Category:Cable Assemblies
Product Lifecycle:Active
Product description

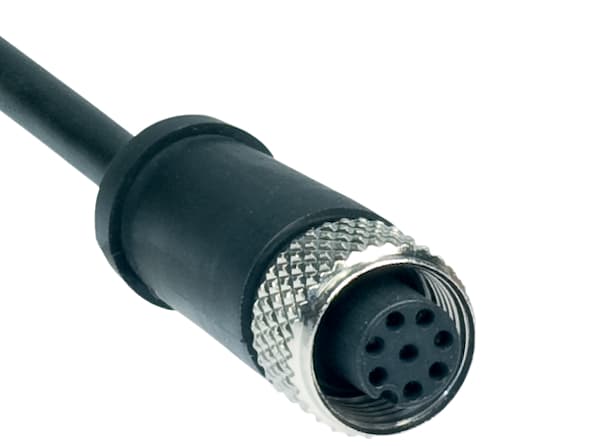

A-K8P-M12-S-G-15M-GY-1-X-A-4 Schmersal - Pre-wired cable; M12; Pre-wired cable; 8-pole
Product Details
- Temperature (repeated), maximum +80 °C
- Operating current 2,000 mA
- Thermal test current 2 A
- Rated operating voltage 30 V
- Temperature (repeated), minimum +0 °C
- Colour of the handle Black
- Ambient temperature, minimum (Connector) -30 °C
- Ambient temperature, maximum (Connector) +90 °C
- Temperature (fixed), maximum +80 °C
- Temperature (fixed), minimum -25 °C
- Material of the handle Plastic, TPU
- Degree of protection IP65, IP67, IP69
- Material of the gland Metal, CuZn, nickel-plated
- Connector latching Screw locking
- Material of the Cable mantle PVC
- Colour of the Cable mantle Grey
- Connector coding A
- Design straight
- Connector typ Female connector, M12
- Halogen free Yes (1)
- Bending radius (repeated) 10 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Gross weight 750 g
- Tightening torque, maximum 1 Nm
- Standards IEC 61076-2-101
- Cable drag chain suitable Yes (1)
- Cable diameter 6.2 mm
- Length of cable 15 m
- Wire cross-section 0.25 mm2
- Number of cable wires 8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A-K8P-M12-S-G-15M-GY-1-X-A-4 on Applied Automation is $165.00. Order now.
