A-K8P-M12-S-G-10M-BK-2-X-A-4-69 Schmersal Cable Assemblies
Part#:A-K8P-M12-S-G-10M-BK-2-X-A-4-69
Alt. Part#:103007359
Manufacturer:Schmersal
Category:Cable Assemblies
Product Lifecycle:Active
Product description

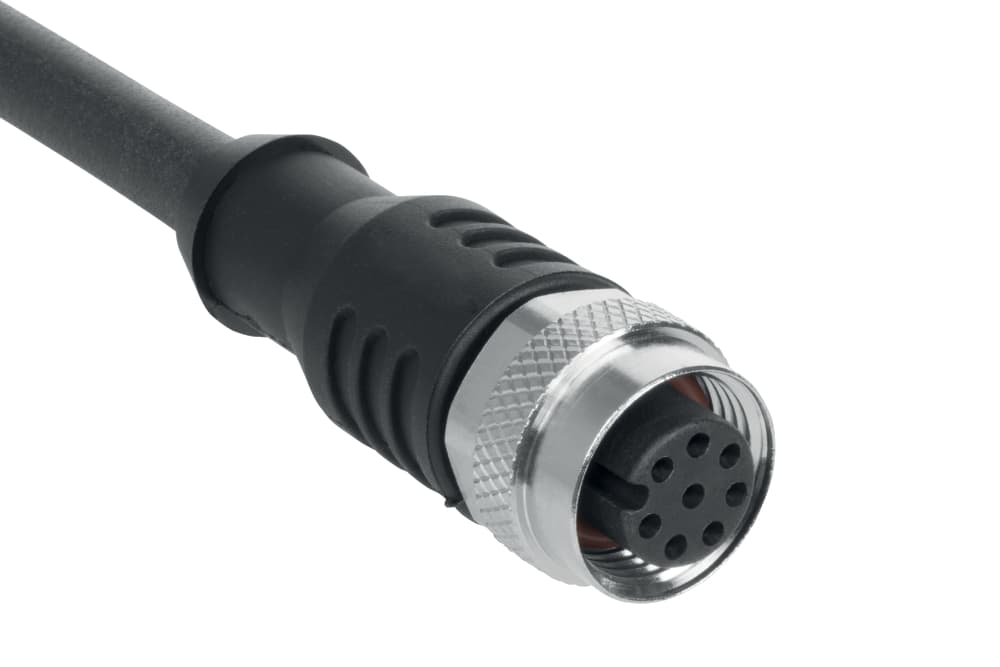

A-K8P-M12-S-G-10M-BK-2-X-A-4-69 Schmersal - Solenoid interlocks; 10 m; Pre-wired cable; 8-pole
Product Details
- Operating current 2,000 mA
- Temperature (drag chain), maximum +60 °C
- Rated operating voltage 30 V
- Thermal test current 2 A
- Temperature (drag chain), minimum -25 °C
- Temperature (repeated), maximum +90 °C
- Ambient temperature, maximum (Connector) +90 °C
- Temperature (fixed), minimum -50 °C
- Ambient temperature, minimum (Connector) -30 °C
- Temperature (fixed), maximum +90 °C
- Temperature (repeated), minimum -30 °C
- Colour of the handle Black
- Material of the handle Plastic, TPU
- Degree of protection IP65, IP67, IP69
- Material of the gland Metal, CuZn, nickel-plated
- Connector typ Female connector, M12
- Connector latching Screw locking
- Connector coding A
- Design straight
- Bending radius (repeated) 10 x Ø-cable
- Material of the Cable mantle PUR
- Colour of the Cable mantle Black
- Bending radius (fixed) 5 x Ø-cable
- Cable diameter 5.9 mm
- Length of cable 10 m
- Number of cable wires 8
- Standards IEC 61076-2-101
- Tightening torque, maximum 1 Nm
- Halogen free Yes (1)
- Wire cross-section 0.25 mm2
- Number of poles 8
- Gross weight 461 g
- Cable drag chain suitable Yes (1)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A-K8P-M12-S-G-10M-BK-2-X-A-4-69 on Applied Automation is $129.00. Order now.
