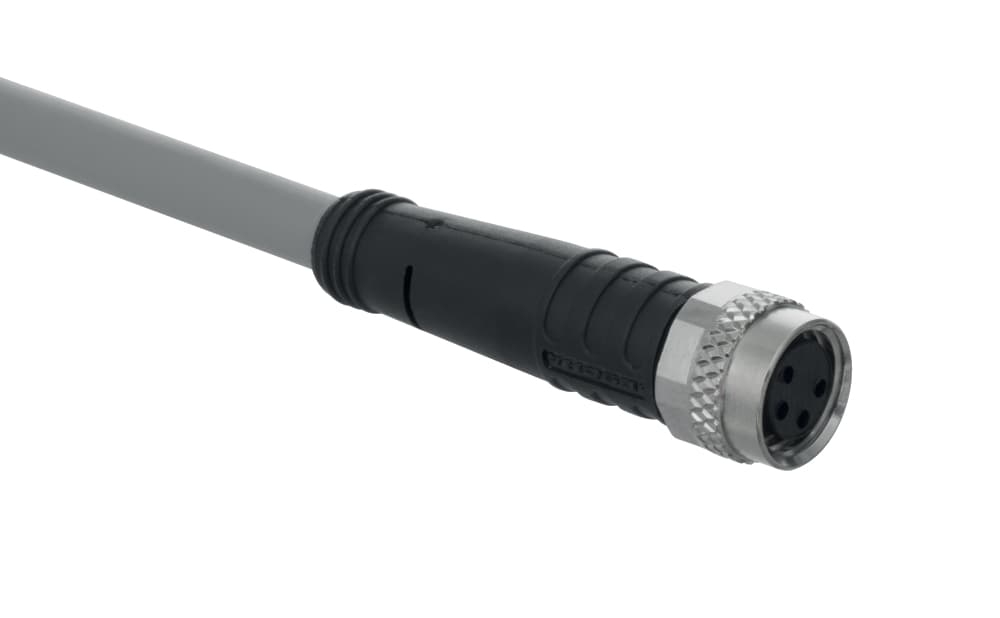

A-K4P-M8-S-G-10M-GY-1-X-X-4 Schmersal Cable Assemblies

Product Details

• Operating current
  4,000 mA
• Temperature (repeated), maximum
  +80 °C
• Thermal test current
  4 A
• Rated operating voltage
  60 V
• Temperature (repeated), minimum
  +0 °C
• Temperature (fixed), maximum
  +80 °C
• Temperature (fixed), minimum
  -25 °C
• Ambient temperature, maximum (Connector)
  +90 °C
• Degree of protection
  IP65, IP67, IP69
• Ambient temperature, minimum (Connector)
  -30 °C
• Material of the gland
  Metal, CuZn, nickel-plated
• Colour of the handle
  Grey
• Material of the handle
  Plastic, TPU
• Material of the Cable mantle
  PVC
• Connector typ
  Female connector, M8
• Connector latching
  Screw locking
• Colour of the Cable mantle
  Grey
• Design
  straight
• Tightening torque, maximum
  0.6 Nm
• Bending radius (repeated)
  10 x Ø-cable
Standards
IEC 61076-2-104
Length of cable
10 m
Gross weight
330.8 g
Bending radius (fixed)
5 x Ø-cable
Wire cross-section
0.25 mm2
Number of poles
4
Cable diameter
4.7 mm
Number of cable wires
4
