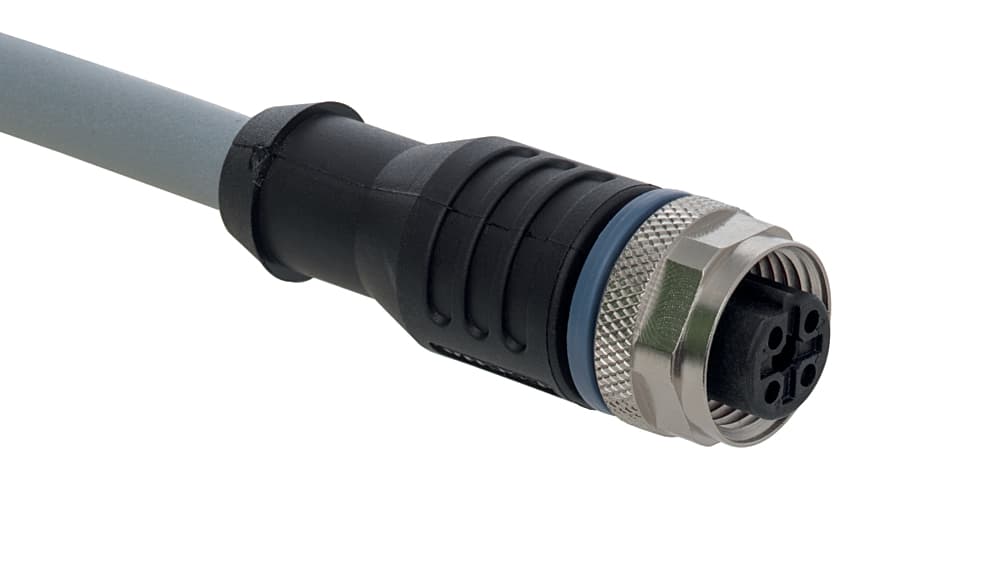

A-K4P-M12-S-G-5M-GY-2-X-B-4-69-075 Schmersal Cable Assemblies
Part#:A-K4P-M12-S-G-5M-GY-2-X-B-4-69-075
Alt. Part#:103010895
Manufacturer:Schmersal
Category:Cable Assemblies
Product Lifecycle:Active
Product description
Pre-wired cable; M12; Pre-wired cable; 4-pole
Product Details
- Tightening torque, maximum 1 Nm
- Thermal test current 4 A
- Operating current 4,000 mA
- Ambient temperature, maximum (Connector) +90 °C
- Rated operating voltage 250 V
- Ambient temperature, minimum (Connector) -30 °C
- Colour of the handle Grey
- Degree of protection IP65, IP67, IP69
- Material of the handle Plastic, TPU
- Connector coding B
- Material of the gland Metal, CuZn, nickel-plated
- Connector latching Screw locking
- Design straight
- Connector typ Female connector, M12
- Material of the Cable mantle PUR
- Bending radius (fixed) 5 x Ø-cable
- Gross weight 286.9 g
- Length of cable 5 m
- Number of cable wires 4
- Wire cross-section 0.75 mm2
- Colour of the Cable mantle Black
- Bending radius (repeated) 10 x Ø-cable
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
