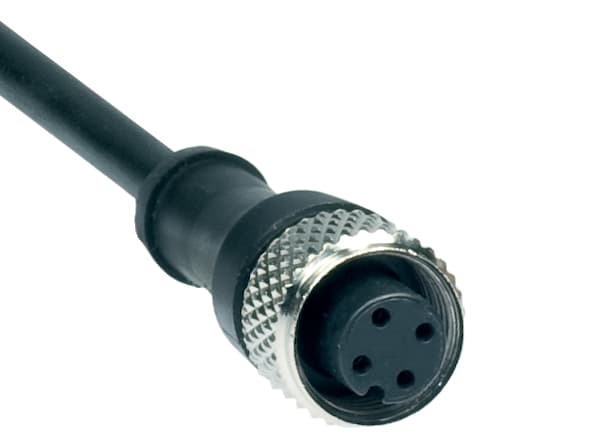

A-K4P-M12-S-G-5M-BK-2-X-A-4-69 Schmersal Cable Assemblies

Product Details

• Operating current
  4 mA
• Rated operating voltage
  250 V
• Thermal test current
  4 A
• Temperature (repeated), minimum
  -30 °C
• Temperature (drag chain), minimum
  -25 °C
• Temperature (drag chain), maximum
  +60 °C
• Temperature (repeated), maximum
  +90 °C
• Temperature (fixed), minimum
  -50 °C
• Ambient temperature, maximum (Connector)
  +90 °C
• Temperature (fixed), maximum
  +90 °C
• Colour of the handle
  Black
• Ambient temperature, minimum (Connector)
  -30 °C
• Degree of protection
  IP65, IP67, IP69
• Material of the handle
  Plastic, TPU
• Material of the gland
  Metal, CuZn, nickel-plated
• Connector latching
  Screw locking
• Connector coding
  A
• Colour of the Cable mantle
  Black
• Design
  straight
• Bending radius (repeated)
  10 x Ø-cable
Bending radius (fixed)
5 x Ø-cable
Material of the Cable mantle
PUR
Standards
IEC 61076-2-101
Tightening torque, maximum
1 Nm
Gross weight
164.5 g
Connector typ
Female connector, M12
Number of cable wires
4
Wire cross-section
0.34 mm2
Length of cable
5 m
Halogen free
Yes (1)
Cable drag chain suitable
Yes (1)
Cable diameter
4.7 mm
