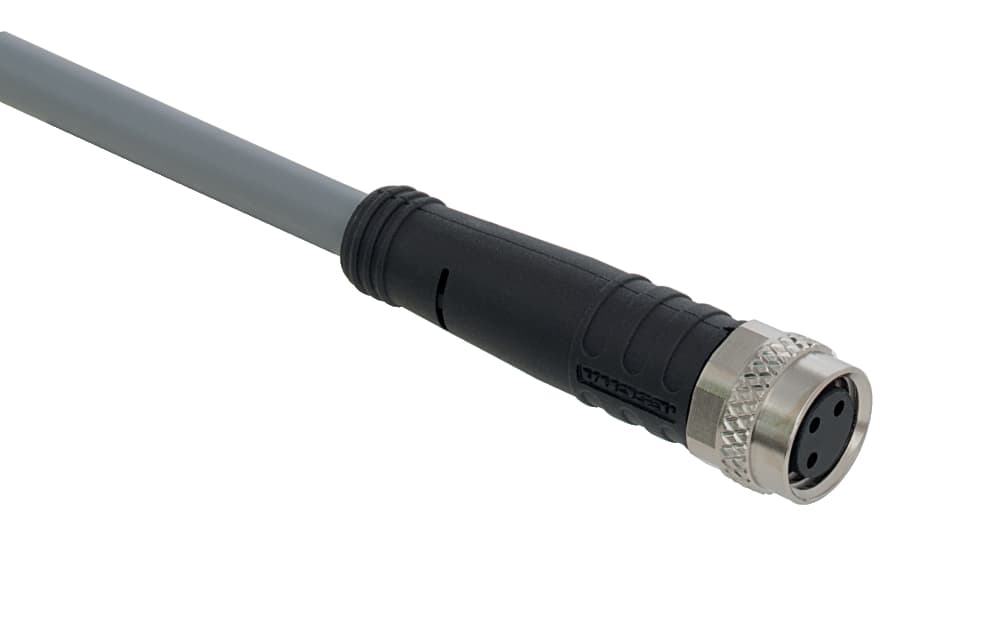

A-K3P-M8-S-G-2M-GY-1-X-X-4 Schmersal Cable Assemblies

Product Details

• Temperature (repeated), maximum
  +80 °C
• Temperature (repeated), minimum
  +0 °C
• Temperature (fixed), minimum
  -25 °C
• Operating current
  4,000 mA
• Rated operating voltage
  60 V
• Temperature (fixed), maximum
  +80 °C
• Ambient temperature, maximum (Connector)
  +90 °C
• Ambient temperature, minimum (Connector)
  -30 °C
• Degree of protection
  IP65, IP67, IP69
• Colour of the handle
  Black
• Material of the handle
  Plastic, TPU
• Connector latching
  Screw locking
• Connector coding
  A
• Material of the Cable mantle
  PVC
• Design
  straight
• Connector typ
  Female connector, M8
• Material of the gland
  Metal, CuZn, nickel-plated
• Bending radius (repeated)
  10 x Ø-cable
• Number of poles
  3
• Cable diameter
  4.3 mm
Gross weight
59.4 g
Number of cable wires
3
Bending radius (fixed)
5 x Ø-cable
Wire cross-section
0.25 mm2
Length of cable
2 m
Standards
IEC 61076-2-104
