134-02AA Parker Hannifin Industrial Automation Components
Part#:134-02AA
Manufacturer:Parker Hannifin
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

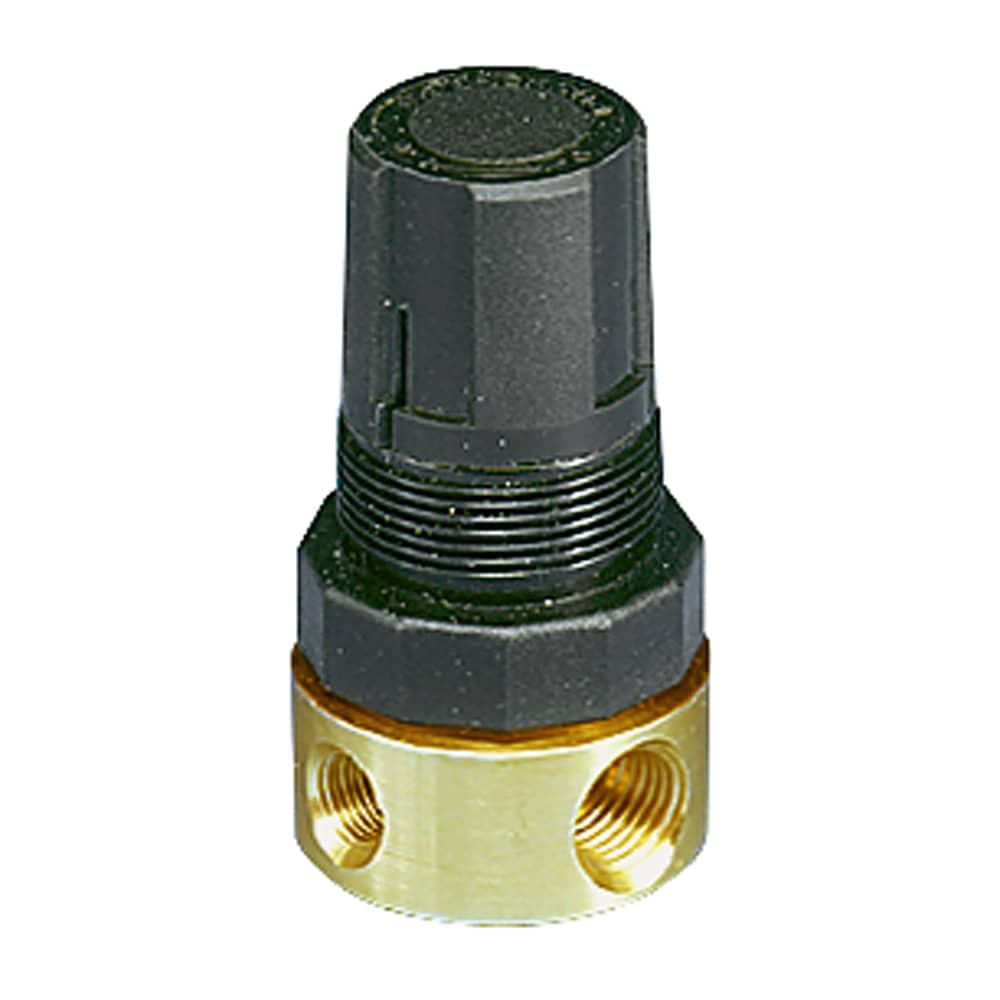

Relief Valves - 134 Series
Product Details
- HTS Code 8481400000
- Maximum Inlet Pressure Rating 300 psig
- Pressure Relief Setting 0 to 6.9 barg
- Adjustment Screw Material Zinc Plated Steel Adjusting Screw and Spring
- Division Pneumatic Division
- Body Material Brass
- Port Type 3 Female Inlet Ports, and 1 outlet port
NPT │ BSPP - Adjustment Mechanism Polypropylene Push-Pull Locking Knob
- Port Size Inlet Port 1/8" and 1/4", Outlet Port 1/4"
- Operating Temperature +40° to +120° °F
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 134-02AA on Applied Automation is $54.70. Order now.
About the product
The 134 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available. The 134 has a brass body with captured exhaust and is an inline type unit with 3 inlet ports and 1 outlet port. Markets: Factory Automation Heavy Industries Features/Benefits: Compact design saves space Top adjustment knob Durable brass body Protects pneumatic circuit or system Applications: Industrial environment General pneumatic assembly
Manufacturer warranty
134-02AA Parker Hannifin
$54.70
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$54.70
$54.70 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 134-02AA with other Industrial Automation Components products
HTS Code
Maximum Inlet Pressure Ra...
Pressure Relief Setting
Adjustment Screw Material
Division
Body Material
Port Type
Adjustment Mechanism
Port Size
Operating Temperature
Selected product
HTS Code8481400000
Maximum Inlet Pressure Rating300 psig
Pressure Relief Setting0 to 6.9 barg
Adjustment Screw MaterialZinc Plated Steel Adjusting ...
DivisionPneumatic Division
Body MaterialBrass
Port Type3 Female Inlet Ports, and 1 ...
Adjustment MechanismPolypropylene Push-Pull Lock...
Port SizeInlet Port 1/8" and 1/4", Ou...
Operating Temperature+40° to +120° °F
E2A-M18KS08-WP-C3 2M
Omron
E2A-M18KS08-WP-C3 2M, DC 3-wire Extended Range Proximity Sensor, Supply voltage: 12 to 24 VDC, Size:...
HTS Code-
Maximum Inlet Pressure Rating-
Pressure Relief Setting-
Adjustment Screw Material-
Division-
Body Material-
Port Type-
Adjustment Mechanism-
Port Size-
Operating Temperature-
HTS Code-
Maximum Inlet Pressure Rating-
Pressure Relief Setting-
Adjustment Screw Material-
Division-
Body Material-
Port Type-
Adjustment Mechanism-
Port Size-
Operating Temperature-
About the manufacturer
Applied Automation is an authorized Parker Hannifin distributor, offering a comprehensive range of high-quality components that cater to various industrial applications. Recognized globally, Parker Hannifin is a leader in motion and control technologies, specializing in products that enhance precision, efficiency, and productivity in diverse sectors. Our partnership provides you access to Parker's...
Recently viewed products
Relevant products
FAQ
What is the price of 134-02AA?
Purchase the 134-02AA from Applied Automation at the price of $54.70. Order today.
Out if stock but available for backorder.
Relief Valves - 134 Series
