9000-41094-0101000 Murr Elektronik Power Supply Accessories
Part#:9000-41094-0101000
Manufacturer:Murr Elektronik
Category:Power Supply Accessories
Alt. Part#:9000-41014-0600000
Product Lifecycle:Active
Get a quick Quote!

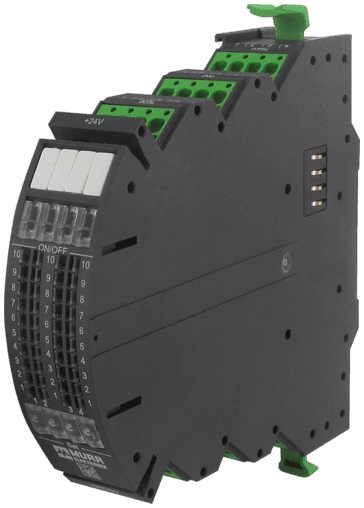

9000-41094-0101000 Murrelektronik - Mico Pro electronic circuit protection, 4 channels, IN: 24 V DC OUT: 24 V DC / 1-2-3-4-5-6-7-8-9-10A
About the manufacturer: Murr Elektronik is one of the manufacturers that offers Power Supply Accessories that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 9000-41094-0101000 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight 166 g
- Series Transformators/Power Supplies
- Product article number of manufacturer 9000-41094-0101000
- Early warning (90%) like operating voltage - max. 20 mA, via power module
- Group alarm output via power module
- Impulse length (CTRL) OFF "high" 40/400 ms, ON "high" 20/200 ms
- Operating voltage 12 V DC; 24 V DC (9...30 V DC)
- Impulse length (ON) "high" 120 ms
- Input voltage (CTRL) 9...30 V DC
- Tolerance 0...+20%
- Cross section (flex) 0.2...4 mm² (AWG 24...12)
- Input voltage (ON) 9...30 V DC
- Connection Bridge system
- Cross section (rigid) 0.2...2.5 mm² (AWG 24...14)
- Total current max. 40 A
- Current adjustment 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 A
- Inrush capacity max. 30 mF
- Parallel usage/serial usage -/Selectivity in 2 levels
- Dimensions H×W×D 130×24×114 mm
- Bridging concept Bridge set (max. 40 A)
- No. of channels 4
- Mounting method DIN-rail mountable TH35 (EN 60715)
- Protection IP20
- Temperature range -25...+55 °C (storage temperature -40...+80 °C)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
9000-41094-0101000 Description
9000-41094-0101000 Murrelektronik - Mico Pro electronic circuit protection, 4 channels, IN: 24 V DC OUT: 24 V DC / 1-2-3-4-5-6-7-8-9-10A
Related documents 9000-41094-0101000 Specs
Manufacturer warranty
$301.60
Select Qty:
$301.60
$301.60 each
