9000-41084-0401000 Murr Elektronik Power Supply Accessories
Part#:9000-41084-0401000
Manufacturer:Murr Elektronik
Category:Power Supply Accessories
Alt. Part#:9000-41034-0401000
Product Lifecycle:Active
Get a quick Quote!

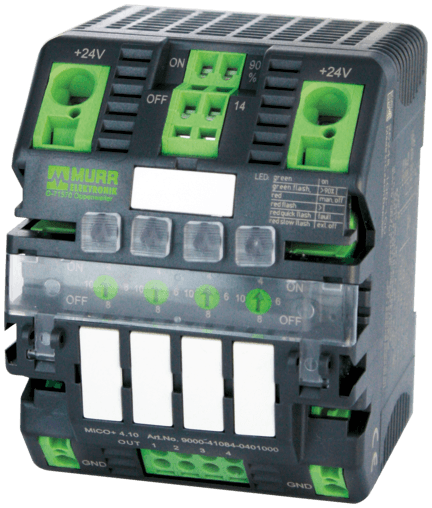

9000-41084-0401000 Murrelektronik - MICO+ 4.10 electronic circuit protection, 4 CHANNELS, IN: 24 V DC OUT: 24 V DC / 4-6-8-10 A
About the manufacturer: Murr Elektronik is one of the manufacturers that offers Power Supply Accessories that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 9000-41084-0401000 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight 190 g
- Series Transformators/Power Supplies
- Input terminals 2× 16 mm²
- Inrush capacity max. 20 mF (per channel)
- Alarm terminals 2.5 mm²
- Output terminals per output 2× 1.5 mm²
- Remote start (OFF) 10...30 V DC
- Group alarm output max. 20 mA; high: all channels ON; low: not all channels ON
- Product article number of manufacturer 9000-41084-0401000
- Early warning (90%) max. 20 mA; high: one channel over 90%; low: all channels under 90%
- Impulse length (ON) min. 20 ms
- Input voltage (ON) 10...30 V DC
- Current adjustment 4 A, 6 A, 8 A, 10 A, by countersinked rotary switch, sealed
- Operating voltage 24 V DC (18...30 V DC)
- Temperature range 0...+55 °C (storage temperature -40...+80 °C)
- Dimensions H×W×D 90×70×80 mm
- Mounting method DIN-rail mountable TH35 (EN 60715)
- Connection Spring clamp terminals
- Bridging concept two sides, with spring clamp terminals or bridge set (max. 40 A)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
9000-41084-0401000 Description
9000-41084-0401000 Murrelektronik - MICO+ 4.10 electronic circuit protection, 4 CHANNELS, IN: 24 V DC OUT: 24 V DC / 4-6-8-10 A
