9000-41064-0400000 Murr Elektronik Power Supply Accessories

9000-41064-0400000 on Applied Automation
Murr Elektronik

Part#:9000-41064-0400000

Manufacturer:Murr Elektronik

Category:Power Supply Accessories

Alt. Part#:9000-41084-0100400

Product Lifecycle:Active

Get a quick Quote!

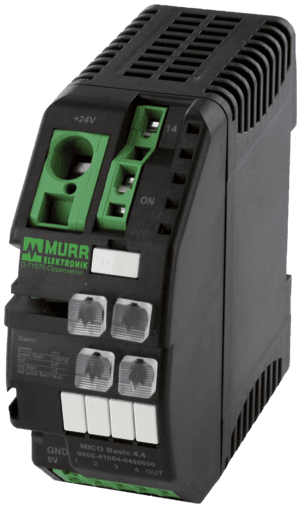

9000-41064-0400000 Murrelektronik - MICO BASIC 4.4 electronic circuit protection, 4 CHANNELS, IN: 24 V DC OUT: 24 V / 4 A

About the manufacturer: Murr Elektronik is one of the manufacturers that offers Power Supply Accessories that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.

Check out the 9000-41064-0400000 Murr Elektronik price in the box on the right side or send a quick quote.

Product Details

  • Weight
    120 g
  • Series
    Transformators/Power Supplies
  • Group alarm output
    max. 20 mA; high: all channels ON; low: not all channels ON
  • Impulse length (ON)
    min. 20 ms
  • Product article number of manufacturer
    9000-41064-0400000
  • Input voltage (ON)
    10...30 V DC
  • Current adjustment
    4 A
  • Operating voltage
    24 V DC (18...30 V DC)
  • Inrush capacity
    max. 20 mF (per channel)
  • Input terminals
    1× 16 mm²
  • Dimensions H×W×D
    90×36×80 mm
  • Bridging concept
    one side, with spring clamp terminals or bridge set (max. 40 A)
  • Temperature range
    0...+55 °C (storage temperature -40...+80 °C)
  • Alarm terminals
    2.5 mm²
  • Connection
    Spring clamp terminals
  • Output terminals
    per output 1× 4 mm²
  • Mounting method
    DIN-rail mountable TH35 (EN 60715)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

9000-41064-0400000 Description

9000-41064-0400000 Murrelektronik - MICO BASIC 4.4 electronic circuit protection, 4 CHANNELS, IN: 24 V DC OUT: 24 V / 4 A

Related documents 9000-41064-0400000 Specs

9000-41064-0400000 DataSheet.pdf
