9000-41034-0101000 Murr Elektronik Power Supply Accessories

9000-41034-0101000 on Applied Automation
Murr Elektronik

Part#:9000-41034-0101000

Manufacturer:Murr Elektronik

Category:Power Supply Accessories

Alt. Part#:9000-41084-0401000

Product Lifecycle:Active

Get a quick Quote!

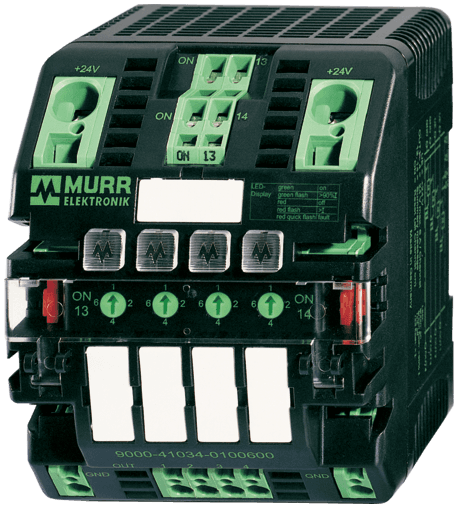

9000-41034-0101000 Murrelektronik - MICO electronic circuit protection, 4 CHANNELS, IN: 24 V DC OUT: 24 V DC / 2x 1-2-3-4 A 2x 4-6-8-10 A

About the manufacturer: Murr Elektronik is one of the manufacturers that offers Power Supply Accessories that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.

Check out the 9000-41034-0101000 Murr Elektronik price in the box on the right side or send a quick quote.

Product Details

  • Weight
    158 g
  • Series
    Transformators/Power Supplies
  • Group alarm output
    potential free 30 V AC/DC, 100 mA
  • Product article number of manufacturer
    9000-41034-0101000
  • Current adjustment
    1 A, 2 A, 3 A, 4 A; 4 A, 6 A, 8 A, 10 A, by countersinked rotary switch, sealed
  • Impulse length (ON)
    min. 20 ms
  • Input voltage (ON)
    10...30 V DC
  • Alarm terminals
    2.5 mm²
  • Connection
    Spring clamp terminals
  • Operating voltage
    24 V DC (18...30 V DC)
  • Input terminals
    2× 16 mm²
  • Output terminals
    per output 1× 4 mm²
  • Inrush capacity
    max. 20 mF (per channel)
  • Temperature range
    0...+55 °C (storage temperature -40...+80 °C)
  • Dimensions H×W×D
    90×70×80 mm
  • Mounting method
    DIN-rail mountable TH35 (EN 60715)
  • Bridging concept
    two sides, with spring clamp terminals or bridge set (max. 40 A)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

9000-41034-0101000 Description

9000-41034-0101000 Murrelektronik - MICO electronic circuit protection, 4 CHANNELS, IN: 24 V DC OUT: 24 V DC / 2x 1-2-3-4 A 2x 4-6-8-10 A

Related documents 9000-41034-0101000 Specs

9000-41034-0101000 DataSheet.pdf
