9000-41011-1000000 Murr Elektronik Power Supply Accessories
Part#:9000-41011-1000000
Manufacturer:Murr Elektronik
Category:Power Supply Accessories
Alt. Part#:9000-41091-0101000
Product Lifecycle:Active
Get a quick Quote!

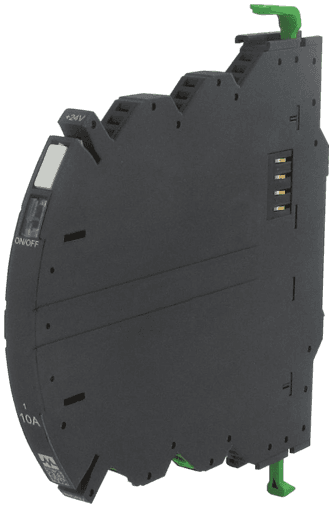

9000-41011-1000000 Murrelektronik - Mico Pro electronic circuit protection, 1 channel, IN: 24 V DC OUT: 24 V DC / 10 A
About the manufacturer: Murr Elektronik is one of the manufacturers that offers Power Supply Accessories that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 9000-41011-1000000 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight 81 g
- Series Transformators/Power Supplies
- Product article number of manufacturer 9000-41011-1000000
- Group alarm output via power module
- Early warning (90%) via power module
- Cross section (rigid) 0.2...2.5 mm² (AWG 24...14)
- Input voltage (ON) via power module
- Input voltage (CTRL) via power module
- Total current max. 40 A
- Operating voltage 12 V DC; 24 V DC (9...30 V DC)
- Impulse length (ON) via power module
- Impulse length (CTRL) via power module
- Protection IP20
- Cross section (flex) 0.2...4 mm² (AWG 24...12)
- Connection Bridge system
- Parallel usage/serial usage -/Selectivity in 2 levels
- Current adjustment 10 A
- Tolerance 0...+20%
- Bridging concept Bridge set (max. 40 A)
- Inrush capacity max. 30 mF
- Dimensions H×W×D 130×8×114 mm
- Temperature range -25...+55 °C (storage temperature -40...+80 °C)
- Mounting method DIN-rail mountable TH35 (EN 60715)
- No. of channels 1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
9000-41011-1000000 Description
9000-41011-1000000 Murrelektronik - Mico Pro electronic circuit protection, 1 channel, IN: 24 V DC OUT: 24 V DC / 10 A
Related documents 9000-41011-1000000 Specs
