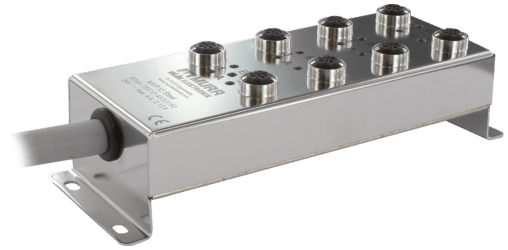

8044-78510-4530500 Murr Elektronik I/O Distributors

Product Details

• Weight
  1650 g
• Series
  Distribution Systems
• Product article number of manufacturer
  8044-78510-4530500
• PIN 4
  (NO)/(S1)
• PIN 5
  (Earth)
• PIN 3
  (-)
• PIN 2
  (NC)/(S2)
• PIN 1
  (+)
• No. of bending cycles (C-track)
  max. 5 Mio. (25 °C)
• Acceleration (C-track)
  max. 5 m/s²
• Travel speed (C-track)
  max. 3.3 m/s
• Bend radius (fixed)
  5× outer Ø
• Temperature range (mobile)
  -20...+90 °C
• Bend radius (moving)
  10× outer Ø
• Temperature range (fixed)
  -40...+90 °C
• Current load capacity
  to DIN VDE 0298-4
• Test voltage
  2000 V AC
• Jacket Color
  gray
• Color (jacket)
  gray
• Nominal voltage
  300 V AC
Outer-Ø (jacket)
11.6 mm ±5%
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free
Shore hardness (jacket)
80 ±5 A
Material (jacket)
TPE-V
Shield
no
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Wire-Ø incl. isolation
1.6 mm ±5% (0.5 mm²); 2.1 mm ±5% (1.0 mm²)
Material (wire isolation)
PP
Shore hardness (wire isolation)
65 ±3 D
AWG
similar to AWG 20 (0.5 mm²); similar to AWG 17 (1.0 mm²)
Diameter (core)
16× 0.5 + 3× 1.0 mm²
Construction (core)
64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6)
Resistor (core)
max. 39 Ω/km (0.5 mm²); max. 20 Ω/km (1.0 mm²); (20 °C)
Single wire Ø (core)
0.1 mm
Cable weight [g/m]
199,1 g
Material (wire)
Cu wire, bare
Cable number
453
Approval (cable)
FDA regulation 21 CFR 177.2600, CE conform
Cable identification
453
Outer Ø
11.6 mm ±5%
Locking of ports
Screw thread (M12×1 mm)
Wire isolation
TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye)
Temperature range
-30...+80 °C
Protection
IP65, IP68, IP69K inserted and tightened (EN 60529)
Housing
Stainless steel 1.4404 (V4A)
C-track properties
5 Mio.
No./diameter of wires
16× 0.5 + 3× 1.0 mm²
Operating current per contact
max. 4 A
Operating voltage
24 V DC
