8000-88511-4520500 Murr Elektronik I/O Distributors

8000-88511-4520500 on Applied Automation
Murr Elektronik

Part#:8000-88511-4520500

Manufacturer:Murr Elektronik

Category:I/O Distributors

Product Lifecycle:Active

Get a quick Quote!

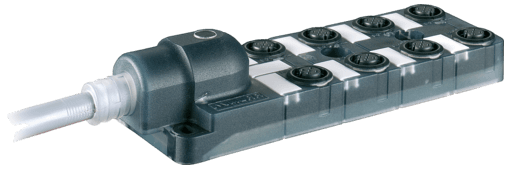

8000-88511-4520500 Murrelektronik - EXACT12, 8XM12, 5-POLE, MOULDED CABLE, 5.0m PUR 16x0,5+3x1,0

About the manufacturer: Murr Elektronik is one of the manufacturers that offers I/O Distributors that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.

Check out the 8000-88511-4520500 Murr Elektronik price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1182 g
  • Series
    Distribution Systems
  • Product article number of manufacturer
    8000-88511-4520500
  • PIN 5
    (Earth)
  • PIN 4
    (NO)/(S1)
  • PIN 2
    (NC)/(S2)
  • Traversing distance (C-track)
    max. 5 m (horizontal)
  • PIN 1
    (+)
  • Acceleration (C-track)
    max. 5 m/s²
  • PIN 3
    (-)
  • Travel speed (C-track)
    max. 2 m/s
  • No. of bending cycles (C-track)
    max. 5 Mio.
  • Temperature range (mobile)
    -20...+90 °C
  • Bend radius (moving)
    10× outer Ø
  • Current load capacity
    to DIN VDE 0298-4
  • Outer-Ø (jacket)
    11.5 mm ±5%
  • chemical resistance
    good resistance to oil, gasoline and chemicals
  • Test voltage
    2000 V AC
  • Shore hardness (jacket)
    94 ±5 A
  • thermal resistance
    flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
  • Nominal voltage
    300/300 V AC
  • Color (jacket)
    gray
  • Material property (jacket)
    CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
  • Diameter (core)
    16× 0.5 + 3× 1.0 mm²
  • Material (jacket)
    PUR
  • AWG
    similar to AWG 20 (0.5 mm²); similar to AWG 17 (1.0 mm²)
  • Wire-Ø incl. isolation
    1.6 mm ±5% (0.5 mm²); 2.1 mm ±5% (1.0 mm²)
  • Material (wire isolation)
    TPE-E
  • Construction (core)
    64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6)
  • Shore hardness (wire isolation)
    55 ±3 D
  • Material (wire)
    Cu wire, bare
  • Resistor (core)
    max. 39 Ω/km (0.5 mm²); max. 20 Ω/km (1.0 mm²); (20 °C)
  • Single wire Ø (core)
    0.1 mm
  • Cable weight [g/m]
    231 g
  • Protection
    IP65/IP67
  • Locking of ports
    Screw thread (M12×1 mm)
  • Temperature range
    -20...+70 °C, depending on cable quality
  • Cable identification
    452
  • Approval (cable)
    cRUus (AWM style 20549/10042); CE compliant
  • Housing
    Plastic, flame retardant
  • Operating current per contact
    max. 4 A
  • Operating voltage
    24 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


8000-88511-4520500 Description

8000-88511-4520500 Murrelektronik - EXACT12, 8XM12, 5-POLE, MOULDED CABLE, 5.0m PUR 16x0,5+3x1,0
