8000-88412-3621000 Murr Elektronik I/O Distributors

8000-88412-3621000 on Applied Automation
Murr Elektronik

Part#:8000-88412-3621000

Manufacturer:Murr Elektronik

Category:I/O Distributors

Product Lifecycle:Active

Get a quick Quote!

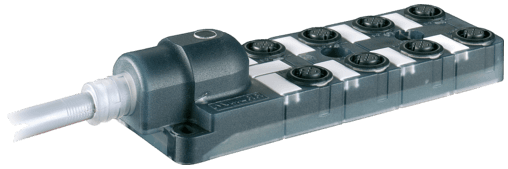

8000-88412-3621000 Murrelektronik - EXACT12, 8XM12, 4 POLE MOULDED CABLE, 10.0m PUR 8x0,34+3X0.75, w.o. LED's

About the manufacturer: Murr Elektronik is one of the manufacturers that offers I/O Distributors that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.

Check out the 8000-88412-3621000 Murr Elektronik price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1500 g
  • Series
    Distribution Systems
  • Product article number of manufacturer
    8000-88412-3621000
  • PIN 4
    (NO)/(S1)
  • PIN 1
    (+)
  • PIN 5
    (Earth)
  • PIN 3
    (-)
  • Travel speed (C-track)
    max. 2 m/s
  • Acceleration (C-track)
    max. 10 m/s²
  • No. of bending cycles (C-track)
    max. 2 Mio. (25 °C)
  • Bend radius (moving)
    10× outer Ø
  • Bend radius (fixed)
    5× outer Ø
  • Current load capacity
    to DIN VDE 0298-4
  • Temperature range (mobile)
    -5...+70 °C
  • Temperature range (fixed)
    -30...+80 °C
  • Color (jacket)
    gray
  • Nominal voltage
    U0/U 300/300 V AC
  • Jacket Color
    gray
  • Test voltage
    2000 V AC
  • chemical resistance
    good resistance to oil, gasoline and chemicals (EN 60811-404)
  • Outer-Ø (jacket)
    8.1 mm ±5%
  • Material (jacket)
    PUR/PVC
  • Shield
    no
  • Color/numbering of wires
    wh, vi, gn, ye, gr, pk, rd, bk+br, bl, gnye longitudinally striped
  • Wire-Ø incl. isolation
    1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
  • Material property (wire isolation)
    CFC-, cadmium-, silicone- and lead-free
  • AWG
    similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
  • Shore hardness (wire isolation)
    43 ±5 D
  • Construction (core)
    19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
  • Cable weight [g/m]
    115,5 g
  • Material (wire isolation)
    PVC
  • Single wire Ø (core)
    0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
  • Material (wire)
    Cu wire, bare
  • Cable Type
    2 (PUR/PVC)
  • Diameter (core)
    8× 0.34 + 3× 0.75 mm²
  • Resistor (core)
    max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
  • Approval (cable)
    UL (AWM-Style 20549/1731), CE conform
  • Outer Ø
    8.1 mm ±5%
  • Cable identification
    362
  • Locking of ports
    Screw thread (M12×1 mm)
  • Temperature range
    -20...+70 °C, depending on cable quality
  • Wire isolation
    PVC
  • C-track properties
    2 Mio.
  • No./diameter of wires
    8× 0.34 + 3× 0.75 mm²
  • Housing
    Plastic, flame retardant
  • Protection
    IP65/IP67
  • Operating current per contact
    max. 4 A
  • Operating voltage
    125 V AC/DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


8000-88412-3621000 Description

8000-88412-3621000 Murrelektronik - EXACT12, 8XM12, 4 POLE MOULDED CABLE, 10.0m PUR 8x0,34+3X0.75, w.o. LED's
