8000-88040-3591500 Murr Elektronik I/O Distributors
Part#:8000-88040-3591500
Manufacturer:Murr Elektronik
Category:I/O Distributors
Product Lifecycle:Active
Get a quick Quote!

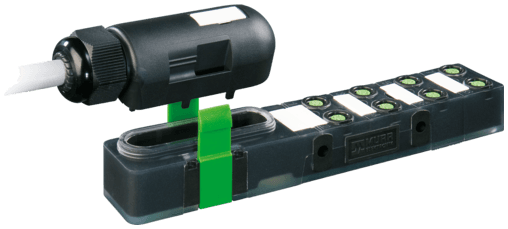

8000-88040-3591500 Murrelektronik - EXACT8, 8XM8, 3 POLE PLUG. CAP, SPRING-TERM., 15.0m PUR 8x0,34+2x0,75, UL/CSA
About the manufacturer: Murr Elektronik is one of the manufacturers that offers I/O Distributors that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 8000-88040-3591500 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight 1714 g
- Series Distribution Systems
- Product article number of manufacturer 8000-88040-3591500
- PIN 4 (NO)/(S1)
- PIN 3 (-)
- PIN 1 (+)
- Material (jacket) PUR (UL/CSA)
- Bend radius (moving) 10× outer Ø
- Jacket Color gray
- Temperature range (fixed) -40...+80 °C
- Bend radius (fixed) 5× outer Ø
- Cable number 359
- Color (jacket) gray
- Temperature range (mobile) -5...+60 °C
- Outer Ø 9.2 mm ±5%
- C-track properties 5 Mio.
- No./diameter of wires 8× 0.34 + 2× 0.75 mm²
- Wire isolation TPE (vi, bk, rd, pk, gr, ye, gn, wh+br, bl)
- Temperature range -20...+80 °C, depending on cable quality
- Form 88040
- Operating voltage 24 V DC
- Total current max. 8 A
- Locking of ports Screw thread (M8×1 mm)
- Housing Plastic, flame retardant
- Protection IP67 inserted and tightened (EN 60529)
- Operating current per contact max. 2 A
- Connection Spring clamp plug-in terminals: max. 1.5 mm² (AWG 16)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
8000-88040-3591500 Description
8000-88040-3591500 Murrelektronik - EXACT8, 8XM8, 3 POLE PLUG. CAP, SPRING-TERM., 15.0m PUR 8x0,34+2x0,75, UL/CSA
Related documents 8000-88040-3591500 Specs
Manufacturer warranty
$469.20
Select Qty:
$469.20
$469.20 each
