8000-84559-4482000 Murr Elektronik I/O Distributors

8000-84559-4482000 on Applied Automation
Murr Elektronik

Part#:8000-84559-4482000

Manufacturer:Murr Elektronik

Category:I/O Distributors

Product Lifecycle:Active

Get a quick Quote!

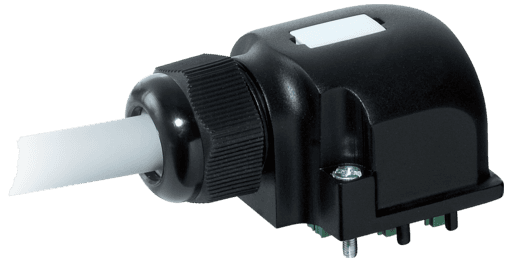

8000-84559-4482000 Murrelektronik - CAP FOR D-BOX M124-WAY 5-POLE, No pot.-sep.20m PUR, 8x0,5+3x1,0

About the manufacturer: Murr Elektronik is one of the manufacturers that offers I/O Distributors that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.

Check out the 8000-84559-4482000 Murr Elektronik price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2200 g
  • Series
    Distribution Systems
  • Product article number of manufacturer
    8000-84559-4482000
  • Bend radius (moving)
    10× outer Ø
  • Material (jacket)
    PUR (UL/CSA)
  • Material (wire)
    Cu wire, bare
  • Approval (cable)
    UL (AWM-Style 20233), CSA
  • Bend radius (fixed)
    5× outer Ø
  • Construction (core)
    64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6)
  • Temperature range (fixed)
    -40...+90 °C
  • Temperature range (mobile)
    -40...+90 °C
  • Jacket Color
    gray
  • Temperature range
    -20...+80 °C, depending on cable quality
  • Total current
    max. 8 A
  • Housing
    Plastic, flame retardant
  • Form
    84559
  • Cable number
    448
  • Wire isolation
    TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, br, bl, gnye)
  • C-track properties
    5 Mio.
  • No./diameter of wires
    8× 0.5 + 3× 1.0 mm²
  • Outer Ø
    9.1 mm ±5%

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8000-84559-4482000 Description

8000-84559-4482000 Murrelektronik - CAP FOR D-BOX M124-WAY 5-POLE, No pot.-sep.20m PUR, 8x0,5+3x1,0

Related documents 8000-84559-4482000 Specs

8000-84559-4482000 DataSheet.pdf
