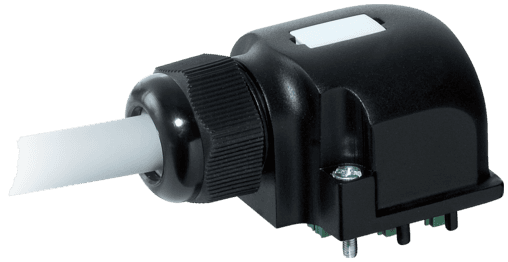

8000-84459-3330300 Murr Elektronik I/O Distributors

Product Details

• Weight
  365 g
• Series
  Distribution Systems
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• Acceleration (C-track)
  max. 10 m/s²
• Product article number of manufacturer
  8000-84459-3330300
• Travel speed (C-track)
  max. 2 m/s
• Bend radius (moving)
  12× outer Ø
• Bend radius (fixed)
  5× outer Ø
• Temperature range (mobile)
  -5...+70 °C
• Temperature range (fixed)
  -30...+80 °C
• Current load capacity
  to DIN VDE 0298-4
• Nominal voltage
  U0/U 300/300 V AC
• Color (jacket)
  gray
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Outer-Ø (jacket)
  7.4 mm ±5%
• Test voltage
  2000 V AC
• Jacket Color
  gray
• Shore hardness (jacket)
  87 ±5 A
• Material (jacket)
  PUR/PVC
• Wire-Ø incl. isolation
  1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Diameter (core)
4× 0.34 + 3× 0.75 mm²
Shore hardness (wire isolation)
43 ±5 D
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Shield
no
Color/numbering of wires
wh, gn, ye, gr+br, bl, gnye longitudinally striped
Material (wire isolation)
PVC
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Construction (core)
19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
Single wire Ø (core)
0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
Material (wire)
Cu wire, bare
Cable number
333
Cable weight [g/m]
91,3 g
Approval (cable)
UL (AWM-Style 21441/10955), CE conform
Cable Type
2 (PUR/PVC)
Temperature range
-20...+80 °C, depending on cable quality
Form
84459
No./diameter of wires
4× 0.34 + 3× 0.75 mm²
Cable identification
333
C-track properties
2 Mio.
Wire isolation
PVC
Outer Ø
7.4 mm ±5%
Total current
max. 8 A
Housing
Plastic, flame retardant
