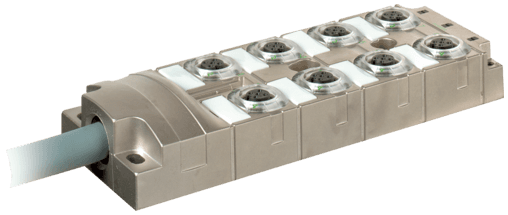

8000-58512-4521500 Murr Elektronik I/O Distributors

Product Details

• Weight
  3500 g
• Series
  Distribution Systems
• Product article number of manufacturer
  8000-58512-4521500
• PIN 5
  (Earth)
• PIN 3
  (-)
• PIN 4
  (NO)/(S1)
• PIN 2
  (NC)/(S2)
• PIN 1
  (+)
• Acceleration (C-track)
  max. 5 m/s²
• Travel speed (C-track)
  max. 2 m/s
• Traversing distance (C-track)
  max. 5 m (horizontal)
• No. of bending cycles (C-track)
  max. 5 Mio.
• Bend radius (moving)
  10× outer Ø
• Temperature range (mobile)
  -20...+90 °C
• Current load capacity
  to DIN VDE 0298-4
• Test voltage
  2000 V AC
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Color (jacket)
  gray
• Nominal voltage
  300/300 V AC
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Outer-Ø (jacket)
11.5 mm ±5%
Wire-Ø incl. isolation
1.6 mm ±5% (0.5 mm²); 2.1 mm ±5% (1.0 mm²)
Shore hardness (wire isolation)
55 ±3 D
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Shore hardness (jacket)
94 ±5 A
Material (jacket)
PUR
Material (wire isolation)
TPE-E
AWG
similar to AWG 20 (0.5 mm²); similar to AWG 17 (1.0 mm²)
Diameter (core)
16× 0.5 + 3× 1.0 mm²
Resistor (core)
max. 39 Ω/km (0.5 mm²); max. 20 Ω/km (1.0 mm²); (20 °C)
Single wire Ø (core)
0.1 mm
Construction (core)
64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6)
Material (wire)
Cu wire, bare
Cable weight [g/m]
231 g
Operating voltage
max. 125 V AC/DC
Approval (cable)
cRUus (AWM style 20549/10042); CE compliant
Operating current per contact
max. 4 A
Cable identification
452
Housing
Zinc die casting, matte nickel plated
Protection
IP65, IP67, IP68
Temperature range
-20...+90 °C, depending on cable quality
Locking of ports
Screw thread (M12×1 mm)
