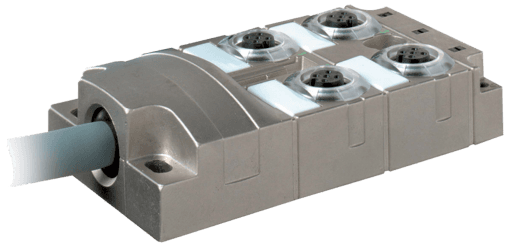

8000-54512-4481000 Murr Elektronik I/O Distributors

Product Details

• Weight
  1650 g
• Series
  Distribution Systems
• PIN 3
  (-)
• PIN 5
  (Earth)
• PIN 2
  (NC)/(S2)
• PIN 4
  (NO)/(S1)
• Outer Ø
  9.1 mm ±5%
• Material (jacket)
  PUR (UL/CSA)
• PIN 1
  (+)
• Bend radius (moving)
  10× outer Ø
• Cable number
  448
• Product article number of manufacturer
  8000-54512-4481000
• Bend radius (fixed)
  5× outer Ø
• Temperature range (mobile)
  -40...+90 °C
• Construction (core)
  64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6)
• Temperature range (fixed)
  -40...+90 °C
• Jacket Color
  gray
• Material (wire)
  Cu wire, bare
• Approval (cable)
  UL (AWM-Style 20233), CSA
• No./diameter of wires
  8× 0.5 + 3× 1.0 mm²
Temperature range
-20...+90 °C, depending on cable quality
Wire isolation
TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, br, bl, gnye)
Protection
IP65, IP67, IP68
C-track properties
5 Mio.
Operating current per contact
max. 4 A
Housing
Zinc die casting, matte nickel plated
Locking of ports
Screw thread (M12×1 mm)
Operating voltage
max. 125 V AC/DC
