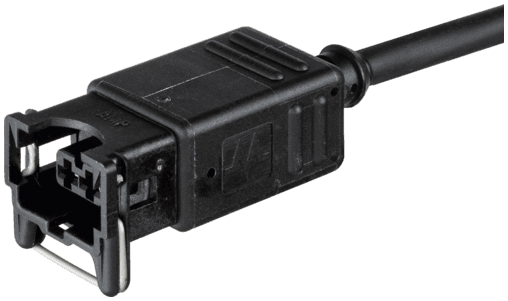

7072-70061-7500750 Murr Elektronik Cable Assemblies

Product Details

• Weight
  370 g
• Series
  Connector Systems
• Cable length
  7,5 m
• Bend radius (moving)
  15× outer Ø
• Product article number of manufacturer
  7072-70061-7500750
• Outer-Ø (jacket)
  5.9 mm ±5%
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Temperature range (mobile)
  -5...+80 °C
• Material (jacket)
  PUR/PVC
• Test voltage
  2000 V AC
• Nominal voltage
  300 V AC
• AWG
  similar to AWG 18
• Temperature range (fixed)
  -40...+80 °C
• Single wire Ø (core)
  0.2 mm
• Color (jacket)
  black
• Construction (core)
  24× 0.2 mm (multi-strand wire class 5)
• Color/numbering of wires
  br, bl
• Stranding combination
  2 wires twisted
• Shield
  no
• Temperature range
  -25...+85 °C, depending on cable quality
Material (wire isolation)
PVC
Cable identification
750
Diameter (core)
2× 0.75 mm²
Approval (cable)
CE conform
Material (wire)
Cu wire, bare
Cable weight [g/m]
48,4 g
Resistor (core)
max. 26 Ω/km (20 °C)
Housing
Black plastic, flame retardant
Current consumption
approx. 12 mA
Operating voltage
12...24 V AC/DC
Form
70061
Operating current per contact
max. 4 A
LED display
(yellow)
Locking material
Stainless steel 1.4305 (V2A)
Protection
IP65 inserted and tightened (EN 60529)
Material
PUR
