7024-17181-9730020 Murr Elektronik Cable Assemblies
Part#:7024-17181-9730020
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

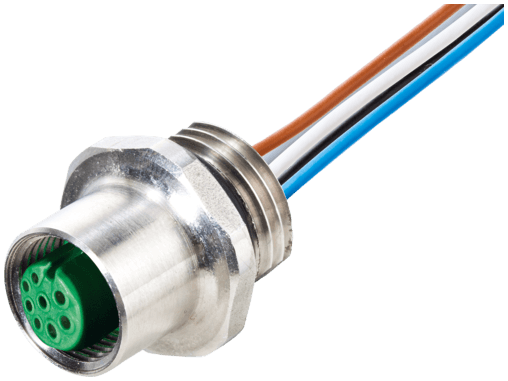

7024-17181-9730020 Murrelektronik - M12 female receptacle A-cod. FM F&B Pro, wires PP 8x0.25 0,2m
Product Details
- Weight 22 g
- Series Connector Systems
- Bend radius (fixed) 10× outer Ø
- Product article number of manufacturer 7024-17181-9730020
- Cable length 0,2 m
- Outer Ø 1.25 mm ±5%
- Temperature range (fixed) -40...+90 °C
- Temperature range (mobile) -25...+90 °C
- Pollution Degree 3
- Temperature range -40...+105 °C, depending on cable quality
- No./diameter of wires 8× 0.25 mm²
- Cable number 973
- Wire isolation PUR (wh, br, gn, ye, gr, pk, bl, rd)
- Protection IP67, IP69K mounted and tightened
- Compression gland M12 (SW14)
- Protection NEMA 3, 4, 6P (UL 50E)
- Coding A-coded
- Locking material Stainless steel 1.4404 (V4A)
- Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
- No. of poles 8
- Form 17181
- Operating voltage max. 30 V AC/DC
- LED display no
- Operating current per contact max. 2 A
- Rated surge voltage 0.8 kV
- Material group IEC 60664-1, category I
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7024-17181-9730020 on Applied Automation is $43.40. Order now.
