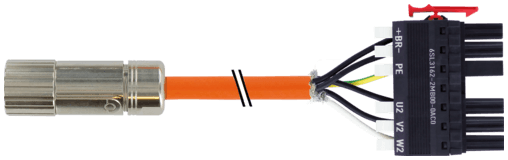

7000-PS411-8631800 Murr Elektronik Cable Assemblies

Product Details

• Weight
  4989 g
• Series
  Connector Systems
• Product article number of manufacturer
  7000-PS411-8631800
• Cable length
  18 m
• Bend radius (moving)
  10× outer Ø
• Torsion stress
  ±30°/m
• Temperature range (mobile)
  -20...+60 °C
• Temperature range (fixed)
  -20...+80 °C
• Bend radius (fixed)
  5× outer Ø
• Jacket Color
  orange
• thermal resistance
  flame retardant UL 1581 VW1 / CSA FT1
• Outer-Ø (jacket)
  12.0 mm ±5%
• Color (jacket)
  orange
• Material (jacket)
  PVC
• Shield
  yes
• optical shield cover
  min. 85%
• Shield (Type)
  Copper braid
• Color/numbering of wires
  bk, wh (1.5 mm²); bk, gnye longitudinally striped (2.5 mm²)
• Material (wire isolation)
  PP
• Single wire Ø (core)
  0.25 mm
Wire-Ø incl. isolation
2.4 ±5% (1.5 mm²); 3.0 ±5% (2.5 mm²)
Resistor (core)
max. 13.3 Ω/km (20 °C)
Material (wire)
Cu wire, bare
Approval (cable)
UL (AWM-Style 2570/10492), CSA
Diameter (core)
(4G2.5 + (2× 1.5)C)-C
Cable number
863
Outer Ø
12.0 mm ±5%
Cable identification
863
C-track properties
0.1 Mio.
Temperature range
-25...+85 °C, depending on cable quality
Pollution Degree
3
Wire isolation
TPM (bk num, gnye)
Compression gland
M23 (SW27)
No./diameter of wires
(4G2.5 + (2× 1.5)C)-C
Material (gasket)
FKM
suitable for corrugated tube (internal Ø)
16 mm; 23 mm
Rated surge voltage
4 kV (PIN 1/2/3/6); 2 kV (PIN 4/5)
Operating voltage
600 V AC/DC (PIN 1/2/3/6); 250 V AC/DC (PIN 4/5)
Locking material
Brass, nickel plated
Operating current per contact
Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²)
Locking of ports
Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing
Protection
IP65 and IP67 when plugged and screwed down (EN 60529)
Material
PUR
Material group
IEC 60664-1, category I
Form
PS411
