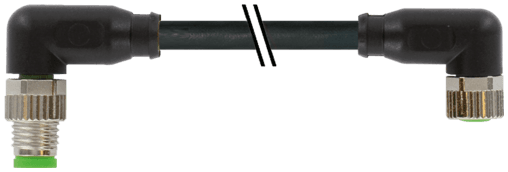

7000-89431-6340750 Murr Elektronik Cable Assemblies

Product Details

• Weight
  259 g
• Series
  Connector Systems
• Cable length
  7,5 m
• Torsion speed
  35 cycles/min
• Product article number of manufacturer
  7000-89431-6340750
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Travel speed (C-track)
  max. 3 m/s
• Torsion stress
  ±180°/m
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Bend radius (moving)
  10× outer Ø
• Acceleration (C-track)
  max. 10 m/s²
• Bend radius (fixed)
  5× outer Ø
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• Current load capacity
  to DIN VDE 0298-4
• Test voltage
  2500 V AC
• Nominal voltage
  300 V AC
• Color (jacket)
  black
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Outer-Ø (jacket)
4.5 mm ±5%
Shore hardness (jacket)
90 ±5 A
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
AWG
similar to AWG 22
Shield
no
Stranding combination
4 wires twisted
Wire-Ø incl. isolation
1.25 mm ±5%
Material (jacket)
PUR
Color/numbering of wires
br, bk, bl, wh
Shore hardness (wire isolation)
70 ±5 D
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Material (wire isolation)
PP
Diameter (core)
4× 0.34 mm²
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Single wire Ø (core)
0.1 mm
Resistor (core)
max. 57 Ω/km (20 °C)
Cable Type
3 (PUR)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Temperature range
-25...+85 °C, depending on cable quality
Pollution Degree
3
Cable weight [g/m]
36,3 g
Material (wire)
Cu wire, bare
Cable identification
634
Mounting method
inserted, tightened
Compression gland
M8 (SW9)
suitable for corrugated tube (internal Ø)
6.5 mm
Locking material
Zinc die casting, matte nickel plated
Operating current per contact
max. 4 A
Protection
IP65 and IP67 when plugged and screwed down (EN 60529)
Form
89431
Rated surge voltage
0.8 kV
Material group
IEC 60664-1, category I
Material
PUR
Locking of ports
Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing
Operating voltage
max. 30 V AC/DC
