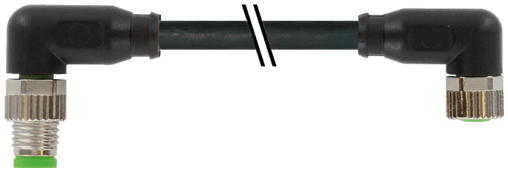

7000-89431-6340015 Murr Elektronik Cable Assemblies

Product Details

• Weight
  19 g
• Series
  Connector Systems
• Cable length
  0,15 m
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Product article number of manufacturer
  7000-89431-6340015
• Torsion stress
  ±180°/m
• Torsion speed
  35 cycles/min
• Travel speed (C-track)
  max. 3 m/s
• Acceleration (C-track)
  max. 10 m/s²
• Current load capacity
  to DIN VDE 0298-4
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• Bend radius (moving)
  10× outer Ø
• Bend radius (fixed)
  5× outer Ø
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Test voltage
  2500 V AC
• Nominal voltage
  300 V AC
• Color (jacket)
  black
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
Outer-Ø (jacket)
4.5 mm ±5%
Shield
no
Material (jacket)
PUR
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Shore hardness (jacket)
90 ±5 A
Color/numbering of wires
br, bk, bl, wh
Wire-Ø incl. isolation
1.25 mm ±5%
Stranding combination
4 wires twisted
Shore hardness (wire isolation)
70 ±5 D
Single wire Ø (core)
0.1 mm
AWG
similar to AWG 22
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Material (wire isolation)
PP
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Diameter (core)
4× 0.34 mm²
Resistor (core)
max. 57 Ω/km (20 °C)
Cable weight [g/m]
36,3 g
Temperature range
-25...+85 °C, depending on cable quality
Cable identification
634
Cable Type
3 (PUR)
Material (wire)
Cu wire, bare
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Mounting method
inserted, tightened
Compression gland
M8 (SW9)
Pollution Degree
3
suitable for corrugated tube (internal Ø)
6.5 mm
Material
PUR
Locking of ports
Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing
Locking material
Zinc die casting, matte nickel plated
Protection
IP65 and IP67 when plugged and screwed down (EN 60529)
Operating voltage
max. 30 V AC/DC
Rated surge voltage
0.8 kV
Operating current per contact
max. 4 A
Material group
IEC 60664-1, category I
Form
89431
