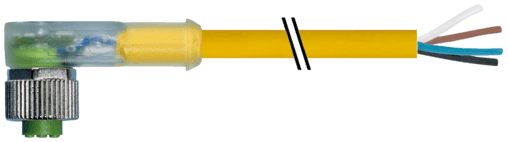

7000-12421-0141000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  430 g
• Series
  Connector Systems
• Product article number of manufacturer
  7000-12421-0141000
• Cable length
  10 m
• Temperature range (mobile)
  -5...+80 °C
• Bend radius (fixed)
  5× outer Ø
• Bend radius (moving)
  10× outer Ø
• Test voltage
  2000 V AC
• Current load capacity
  to DIN VDE 0298-4
• Temperature range (fixed)
  -30...+80 °C
• thermal resistance
  flame retardant UL 1581 VW1 / CSA FT1
• Nominal voltage
  UL 300 V AC
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Shore hardness (jacket)
  85 ±5 A
• Color (jacket)
  yellow
• Outer-Ø (jacket)
  5.0 mm ±5%
• Shore hardness (wire isolation)
  45 ±5 D
• Color/numbering of wires
  br, bk, bl, wh
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Stranding combination
  4 wires twisted
Material (jacket)
PVC
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Shield
no
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
AWG
similar to AWG 22
Resistor (core)
max. 60 Ω/km (20 °C)
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Single wire Ø (core)
0.15 mm
Material (wire isolation)
PVC
Diameter (core)
4× 0.34 mm²
Material (wire)
Cu wire, bare
Cable weight [g/m]
40,7 g
Approval (cable)
UL (AWM-Style 2464/1731), CSA
Cable Type
1 (PVC)
Cable identification
014
Pollution Degree
3
Temperature range
-25...+85 °C, depending on cable quality
Locking material
Zinc die casting, matte nickel plated
Compression gland
M12 (SW13)
Standards
DIN EN 61076-2-101 (M12)
suitable for corrugated tube (internal Ø)
10 mm
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Material
PUR
Material group
IEC 60664-1, category I
Operating voltage (only UL listed)
max. 30 V DC
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
LED display
LED (green): Power / LED (yellow): (S1) / LED (white): Signal (S2)
Rated surge voltage
0.8 kV
Operating current per contact
max. 4 A
Coding
A-coded
Operating voltage
24 V DC ±25%
Form
12421
