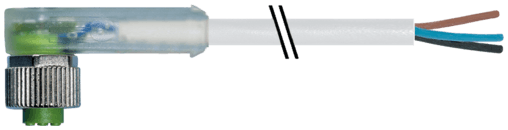

7000-12381-2330500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  154 g
• Series
  Connector Systems
• Cable length
  5 m
• Product article number of manufacturer
  7000-12381-2330500
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Travel speed (C-track)
  max. 3 m/s
• Torsion speed
  35 cycles/min
• Acceleration (C-track)
  max. 10 m/s²
• Torsion stress
  ±180°/m
• Bend radius (moving)
  10× outer Ø
• Bend radius (fixed)
  5× outer Ø
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Nominal voltage
  300 V AC
• Current load capacity
  to DIN VDE 0298-4
• Test voltage
  2500 V AC
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Outer-Ø (jacket)
  4.1 mm ±5%
Color (jacket)
gray
Shore hardness (jacket)
90 ±5 A
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Material (jacket)
PUR
Shield
no
Color/numbering of wires
br, bk, bl
Wire-Ø incl. isolation
1.25 mm ±5%
Stranding combination
3 wires twisted
Shore hardness (wire isolation)
70 ±5 D
Material (wire isolation)
PP
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
AWG
similar to AWG 22
Diameter (core)
3× 0.34 mm²
Single wire Ø (core)
0.1 mm
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Cable weight [g/m]
29,7 g
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Stripping length (jacket)
20 mm
Material (wire)
Cu wire, bare
Cable Type
3 (PUR)
Cable identification
233
Resistor (core)
max. 57 Ω/km (20 °C)
Pollution Degree
3
Temperature range
-25...+85 °C, depending on cable quality
Material (contact surface)
Au
Material (gasket)
FKM
Material (contact)
Copper alloy
Standards
DIN EN 61076-2-101 (M12)
Mounting method
inserted, tightened
Locking material
Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø)
10 mm
Material
PUR
Compression gland
M12 (SW13)
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Operating voltage (only UL listed)
30 V DC
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Coding
A-coded
Rated surge voltage
0.8 kV
Form
12381
Material group
IEC 60664-1, category I
Operating voltage
24 V DC ±25%
Operating current per contact
max. 4 A
LED display
(yellow/green)
