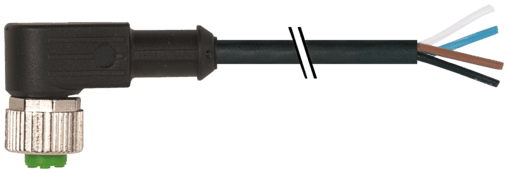

7000-12341-6341500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  601 g
• Series
  Connector Systems
• Cable length
  15 m
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Torsion stress
  ±180°/m
• Product article number of manufacturer
  7000-12341-6341500
• Acceleration (C-track)
  max. 10 m/s²
• Travel speed (C-track)
  max. 3 m/s
• Torsion speed
  35 cycles/min
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Bend radius (moving)
  10× outer Ø
• Bend radius (fixed)
  5× outer Ø
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Test voltage
  2500 V AC
• Current load capacity
  to DIN VDE 0298-4
• Color (jacket)
  black
• Nominal voltage
  300 V AC
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
Outer-Ø (jacket)
4.5 mm ±5%
Shore hardness (jacket)
90 ±5 A
Wire-Ø incl. isolation
1.25 mm ±5%
Shield
no
Color/numbering of wires
br, bk, bl, wh
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Stranding combination
4 wires twisted
Material (jacket)
PUR
Material (wire isolation)
PP
Shore hardness (wire isolation)
70 ±5 D
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
AWG
similar to AWG 22
Diameter (core)
4× 0.34 mm²
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Resistor (core)
max. 57 Ω/km (20 °C)
Single wire Ø (core)
0.1 mm
Cable weight [g/m]
36,3 g
Material (wire)
Cu wire, bare
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Cable identification
634
Cable Type
3 (PUR)
Temperature range
-25...+85 °C, depending on cable quality
Stripping length (jacket)
20 mm
Pollution Degree
3
Mounting method
inserted, tightened
Material (contact surface)
Au
Material (gasket)
FKM
Standards
DIN EN 61076-2-101 (M12)
Compression gland
M12 (SW13)
suitable for corrugated tube (internal Ø)
10 mm
Locking material
Zinc die casting, matte nickel plated
Material (contact)
Copper alloy
Material
PUR
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Operating voltage
max. 250 V AC/DC
Coding
A-coded
Operating current per contact
max. 4 A
Material group
IEC 60664-1, category I
Operating voltage (only UL listed)
max. 30 V AC/DC
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Rated surge voltage
2.5 kV
Form
12341
