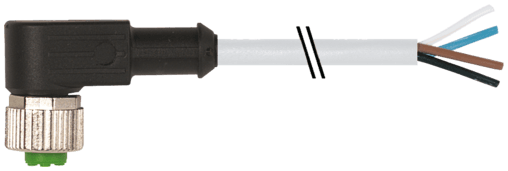

7000-12341-2140300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  137 g
• Series
  Connector Systems
• Bend radius (moving)
  10× outer Ø
• Cable length
  3 m
• Bend radius (fixed)
  5× outer Ø
• Product article number of manufacturer
  7000-12341-2140300
• Temperature range (mobile)
  -5...+80 °C
• Temperature range (fixed)
  -30...+80 °C
• Current load capacity
  to DIN VDE 0298-4
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Nominal voltage
  UL 300 V AC
• Test voltage
  2000 V AC
• thermal resistance
  flame retardant UL 1581 VW1 / CSA FT1
• Outer-Ø (jacket)
  5.0 mm ±5%
• Color (jacket)
  gray
• Material (jacket)
  PVC
• Shore hardness (jacket)
  85 ±5 A
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Shield
  no
• Stranding combination
  4 wires twisted
Color/numbering of wires
br, bk, bl, wh
Wire-Ø incl. isolation
1.25 mm ±5%
Shore hardness (wire isolation)
45 ±5 D
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
AWG
similar to AWG 22
Diameter (core)
4× 0.34 mm²
Material (wire isolation)
PVC
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Resistor (core)
max. 60 Ω/km (20 °C)
Cable Type
1 (PVC)
Material (wire)
Cu wire, bare
Single wire Ø (core)
0.15 mm
Cable weight [g/m]
40,7 g
Approval (cable)
UL (AWM-Style 2464/1731), CSA
Cable identification
214
Temperature range
-25...+85 °C, depending on cable quality
Material (gasket)
FKM
Stripping length (jacket)
20 mm
Material (contact)
Copper alloy
Pollution Degree
3
Material (contact surface)
Au
Locking material
Zinc die casting, matte nickel plated
Standards
DIN EN 61076-2-101 (M12)
Mounting method
inserted, tightened
Compression gland
M12 (SW13)
Material
PUR
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
suitable for corrugated tube (internal Ø)
10 mm
Rated surge voltage
2.5 kV
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Operating current per contact
max. 4 A
Operating voltage (only UL listed)
max. 30 V AC/DC
Operating voltage
max. 250 V AC/DC
Material group
IEC 60664-1, category I
Coding
A-coded
Form
12341

7000-12341-2140300 Related Documents
