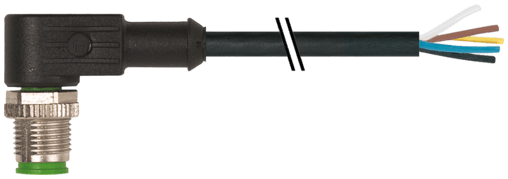

7000-12121-6351000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  396 g
• Series
  Connector Systems
• Cable length
  10 m
• Product article number of manufacturer
  7000-12121-6351000
• Torsion speed
  35 cycles/min
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Torsion stress
  ±180°/m
• Acceleration (C-track)
  max. 10 m/s²
• Travel speed (C-track)
  max. 3 m/s
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Bend radius (moving)
  10× outer Ø
• Bend radius (fixed)
  5× outer Ø
• Temperature range (mobile)
  -25...+80 °C
• Temperature range (fixed)
  -40...+80 °C
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Current load capacity
  to DIN VDE 0298-4
• Nominal voltage
  300 V AC
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Test voltage
  2500 V AC
• Shore hardness (jacket)
  90 ±5 A
Color (jacket)
black
Outer-Ø (jacket)
4.8 mm ±5%
Material (jacket)
PUR
Jacket Color
black
Color/numbering of wires
br, bk, bl, wh, gnye longitudinally striped
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Shield
no
Stranding combination
5 wires twisted around central filler
Wire-Ø incl. isolation
1.25 mm ±5%
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Shore hardness (wire isolation)
70 ±5 D
Material (wire isolation)
PP
Diameter (core)
5× 0.34 mm²
AWG
similar to AWG 22
Cable weight [g/m]
41,8 g
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Single wire Ø (core)
0.1 mm
Resistor (core)
max. 57 Ω/km (20 °C)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material (wire)
Cu wire, bare
Outer Ø
4.8 mm ±5%
Cable identification
635
Cable Type
3 (PUR)
Pollution Degree
3
Compression gland
M12 (SW13)
C-track properties
10 Mio.
Temperature range
-25...+85 °C, depending on cable quality
Wire isolation
PP (br, wh, bl, bk, gnye)
No./diameter of wires
5× 0.34 mm²
suitable for corrugated tube (internal Ø)
10 mm
Standards
DIN EN 61076-2-101 (M12)
Material
PUR
Locking material
Zinc die casting, matte nickel plated
Operating current per contact
max. 4 A
Material group
IEC 60664-1, category I
Rated surge voltage
1.5 kV
Form
12121
Operating voltage
max. 125 V AC/DC
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Operating voltage (only UL listed)
max. 30 V AC/DC
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Coding
A-coded
