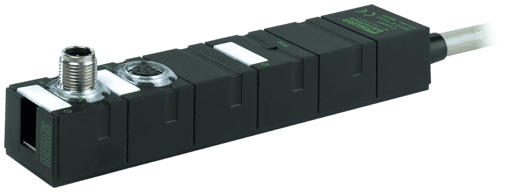

5667102 Murr Elektronik I/O Systems

Product Details

• Weight
  965 g
• Series
  Field Bus System
• Monitoring - no voltage
  yes
• Short-circuit and overload
  yes
• Monitoring - under voltage
  yes
• Actuator warning
  per channel via LED and BUS
• Diagnostic via LED
  per module and channel
• Sensor-system/actuator supply
  via internal system connection (max. 2× 4 A)
• Diagnostic via BUS
  per module and channel
• Communication status
  via LED
• Product article number of manufacturer
  5667102
• Fieldbus
  via internal system connection
• I/O ports
  SUB-D37
• LED display
  US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
• Switching current per output
  max. 0.5 A (short-circuit and overload protected)
• Current consumption
  max. 50 mA
• Cable Length
  5.0 m
• Dimensions H×W×D
  150×30×34.5 mm
• No./diameter of wires
  36× 0.14 mm²
• Actuator supply UA
  24 V DC (EN 61131-2), via system connection (max. 4 A)
Material (jacket)
PVC
Mounting method
2-hole screw mounting
Protection
IP20/IP67
Temperature range
0...+55 °C (storage temperature -20...+75 °C)
Type
for 3-wire sensors or mechanical switches, PNP
Input filter
1 ms
Sensor supply US
24 V DC (EN 61131-2), max. 0.2 A
