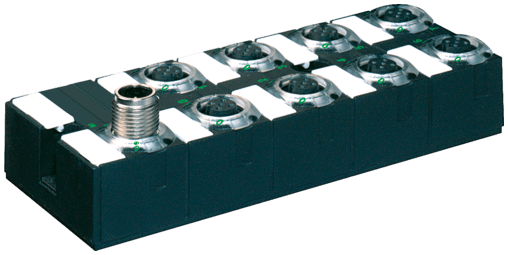

5660160 Murr Elektronik I/O Systems

Product Details

• Weight
  380 g
• Series
  Field Bus System
• Short-circuit and overload
  yes
• Monitoring - under voltage
  yes
• Monitoring - no voltage
  yes
• Actuator warning
  per channel via LED and BUS
• Sensor-system/actuator supply
  via internal system connection (max. 2× 4 A)
• Diagnostic via BUS
  per module and channel
• Product article number of manufacturer
  5660160
• Diagnostic via LED
  per module and channel
• Communication status
  via LED
• I/O ports
  M12 (female) 5-pole, A-coded
• Fieldbus
  via internal system connection
• PIN 2
  Input/Output/Diagnostic
• PIN 4
  Input/Output
• Current consumption
  max. 50 mA
• LED display
  US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
• Lamp load
  10 W
• Temperature range
  0...+55 °C (storage temperature -20...+75 °C)
• Input filter
  1 ms
Sensor supply US
24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Dimensions H×W×D
126×50×34.5 mm
Actuator supply UA
24 V DC (EN 61131-2), via system connection (max. 4 A)
Protection
IP69K
Type
for 3-wire sensors or mechanical switches, PNP
Mounting method
2-hole screw mounting
Switching current per output
max. 0.5 A (short-circuit and overload protected)
