56446 Murr Elektronik I/O Systems

56446 on Applied Automation
Murr Elektronik

Part#:56446

Manufacturer:Murr Elektronik

Category:I/O Systems

Product Lifecycle:Active

Get a quick Quote!

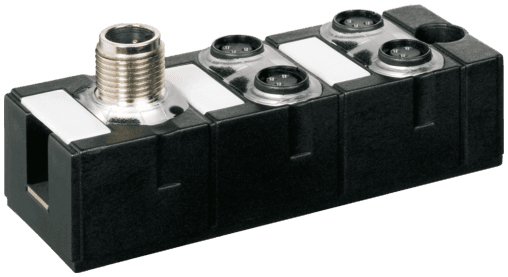

56446 Murrelektronik - MASI68 I/O MODUL, 2 digital inputs and 2 digital outputs, MASI68 DI2/0,1A DO2/0,5A AB 4xM8, AB-Slave

About the manufacturer: Murr Elektronik is one of the manufacturers that offers I/O Systems that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.

Check out the 56446 Murr Elektronik price in the box on the right side or send a quick quote.

Product Details

  • Weight
    127 g
  • Series
    Field Bus System
  • Protection
    IP68
  • Temperature range
    -20...+60 °C (storage temperature -20...+70 °C)
  • Dimensions H×W×D
    85×30×34.5 mm
  • Mounting method
    screw fixing
  • Monitoring - no voltage
    yes
  • Diagnostic via LED
    per module
  • Product article number of manufacturer
    56446
  • I/O ports
    M8, 3-pole
  • Communication status
    via LED
  • Type
    for 3-wire sensors or mechanical switches, PNP
  • Fieldbus
    A-coded
  • Sensor supply US
    max. 100 mA from AS-Interface (short-circuit and overload protected)
  • Switching current per output
    max. 0.5 A (short-circuit and overload protected)
  • Supply voltage
    24 V DC external (18...30.2 V DC) EN 61131-2
  • Addressing
    via master or M12 connection and programming device
  • Bus voltage (AS-Interface)
    26.5...31.6 V DC
  • Address range
    1...62 (1...31 A or B)
  • Total current
    max. 250 mA
  • Profile (IO/ID/ID2 code)
    S-7.A.E

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

56446 Description

56446 Murrelektronik - MASI68 I/O MODUL, 2 digital inputs and 2 digital outputs, MASI68 DI2/0,1A DO2/0,5A AB 4xM8, AB-Slave

Related documents 56446 Specs

56446 DataSheet.pdf
