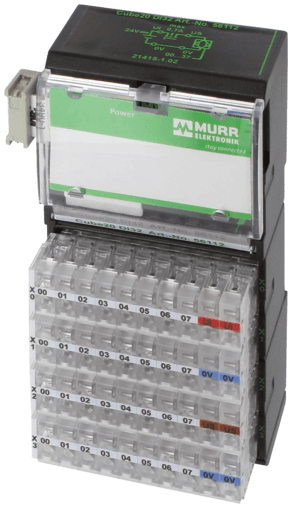

56118 Murr Elektronik I/O Systems

Product Details

• Weight
  258 g
• Series
  Field Bus System
• Monitoring - no voltage
  no
• Short-circuit and overload
  yes
• Communication status
  via LED
• Diagnostic via LED
  per module and channel
• Diagnostic via BUS
  per module and channel
• Module supply
  via system connection
• I/O ports
  32× spring clamp plug-in terminals, max. 2.5 mm²
• Monitoring - under voltage
  yes
• Product article number of manufacturer
  56118
• Sensor-system/actuator supply
  8× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
• Fieldbus
  Ribbon cable connection
• Actuator supply UA
  24 V DC (EN 61131-2), max. 12 A
• Switching current per output
  max. 0.5 A (short-circuit and overload protected)
• Temperature range
  0...+55 °C (storage temperature -20...+85 °C)
• Dimensions H×W×D
  117×56×47 mm
• Galvanic isolation
  500 V DC between outputs and internal communication
• Current consumption
  max. 25 mA
• Lamp load
  10 W
Mounting method
DIN-rail mountable (EN 60715)
Protection
IP20
