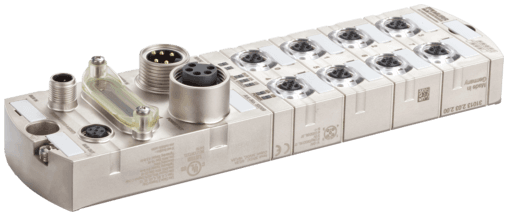

55274 Murr Elektronik I/O Systems

Product Details

• Weight
  812 g
• Series
  Field Bus System
• Lamp load
  10 W
• Actuator supply UA
  24 V DC (EN 61131-2), max. 9 A
• Sensor supply US
  24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
• Switching current per output
  max. 1.6 A (short-circuit and overload protected)
• Cable break
  per port
• Monitoring - no voltage
  yes
• Diagnostic via BUS
  per module and channel
• Short-circuit and overload
  yes
• Actuator warning
  per channel via LED and BUS
• Monitoring - under voltage
  yes
• Product article number of manufacturer
  55274
• Diagnostic via LED
  per module and channel
• Fieldbus
  PROFIBUS 12 Mbit/s; M12, B-coded
• Communication status
  via LED
• Sensor-system/actuator supply
  7/8", 5-pole, 2× max. 9 A
• I/O ports
  M12, 5-pole, A-coded
• Type
  for 3-wire sensors or mechanical switches, PNP
• Addressing
  Rotary switch 1...99
Mounting method
2-hole screw mounting
Protection
IP67
Dimensions H×W×D
42×63×225 mm
Temperature range
-25...+55 °C (storage temperature -25...+70 °C)
