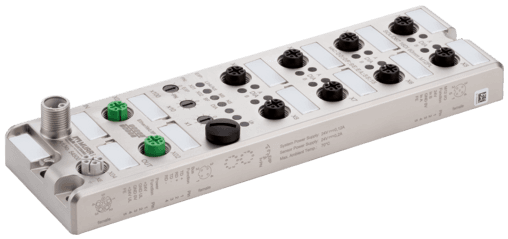

54504 Murr Elektronik I/O Systems

Product Details

• Weight
  621 g
• Series
  Field Bus System
• Monitoring - no voltage
  yes
• Short-circuit and overload
  yes
• Monitoring - under voltage
  yes
• Cable break
  per port
• Actuator warning
  via LED and BUS
• Product article number of manufacturer
  54504
• Diagnostic via BUS
  per module and channel
• Diagnostic via LED
  per module and channel
• DLR (Device Level Ring)
  yes
• MRP
  yes
• Communication status
  via LED
• PROFINET Netload Class
  II
• Shared Device
  yes, for 2 controls
• I/O ports
  M12, 5-pole, A-coded
• Addressing
  DCP
• Operating modes
  COM1; COM2; COM3 (automatic)
• IO-Link
  8× Master
• Transfer parameters
  32 Input byte and/or 32 Output byte (per IO-Link port)
PIN 2
Input (port X1...X4); Output (port X5...X8)
PIN 4
Input (port X1...X8); Output (port X1...X8); IO-Link Master (port X1...X8)
Fieldbus
Ethernet 10/100 Mbit/s; M12, D-coded
Sensor-system/actuator supply
M12 Power, 5-pole, L-coded
Protection
IP67
Type
for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
Sensor supply US
24 V DC (EN 61131-2), max. 500 mA (M12 female), short-circuit and overload protected
Port Class
4× A (port X1...X4), 4× B (port X5...X8, galvanically separated, max. 2 A per port)
Switching current per output
max. 0.5 A (PIN 4, X1...X8); 2 A (PIN 2/5 Uaux, X5...X8), short-circuit and overload protected
Actuator supply UA
24 V DC (EN 61131-2), max. 9 A
Specification
IO-Link Master V1.1
Dimensions H×W×D
43.1×60×200 mm
Temperature range
-20...+70 °C
Mounting method
2-hole screw mounting
