516014 Murr Elektronik Control Circuits
Part#:516014
Alt. Part#:51130
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

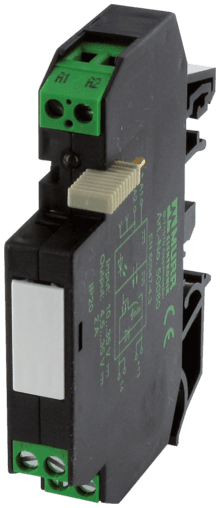

516014 Murrelektronik - RMMD 1S+1\/24VDC INPUT RELAY, IN: 24 VDC - OUT: 250 VAC/DC / 3 A, 1 N/C / 1 N/O contact - 12 mm screw-type terminal
Product Details
- Weight 41 g
- Series Interface Modules
- Product article number of manufacturer 516014
- Plug link (supplied) Art-No. 90960
- AC-1 3 A (24 V AC); 2 A (230 V AC)
- DC-13 0.8 A (24 V DC); 0.01 A (230 V DC)
- AC-15 1 A (24 V AC); 0.1 A (230 V AC)
- Connection voltage - current 24 V DC (17.5...30 V DC) - 14 mA
- LED display LED (red)
- Power rating (voltage dependent) max. 500 VA/180 W
- Switching current per output max. 3 A
- Switching frequency max. 10 Hz
- Mounting method DIN-rail mountable TH35 or G32 (EN 60715)
- Dimensions H×W×D 82×12×68 mm
- Temperature range -20...+60 °C
- Test isolation voltage 2.5 kV
- Contact material Ag Ni 0.15 hv
- Min. load current 1 mA
- Energize/release/contact bounce time 6/3/2 ms
- Switching voltage max. 250 V AC/DC
- Mech./ elect. life 20 000 000 switching cycles/load dependent
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
