51100 Murr Elektronik Control Circuits
Part#:51100
Alt. Part#:51120
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

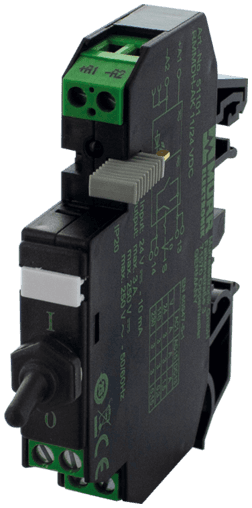

51100 Murrelektronik - RMMDA 11/24 OUTPUT RELAY, IN: 24 VDC - OUT: 250 VAC/DC / 8A, 1 N/O contact - 12 mm screw-type terminal
Product Details
- Weight 44 g
- Series Interface Modules
- Switching frequency max. 10 Hz
- DC-13 2.5 A (24 V DC); 0.4 A (110 V DC); 0.3 A (230 V DC)
- LED display LED (red)
- Connection voltage - current 24 V DC (21.6...26.4 V DC) - 13.5 mA
- Product article number of manufacturer 51100
- AC-1 8 A (24/110/230 V AC)
- AC-15 3 A (24/110/230 V AC)
- Plug link (supplied) Art-No. 90960
- Switching current per output max. 8 A
- Power rating (voltage dependent) max. 2000 VA/240 W
- Mounting method DIN-rail mountable TH35 or G32 (EN 60715)
- Energize/release/contact bounce time 10/15/2 ms
- Min. load current 100 mA
- Mech./ elect. life 20 000 000 switching cycles/load dependent
- Dimensions H×W×D 82×12×68 mm
- Test isolation voltage 5 kV; safe separation (IEC 61140/EN 61140)
- Switching voltage max. 250 V AC/DC
- Temperature range -20...+50 °C
- Contact material Ag Ni
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
