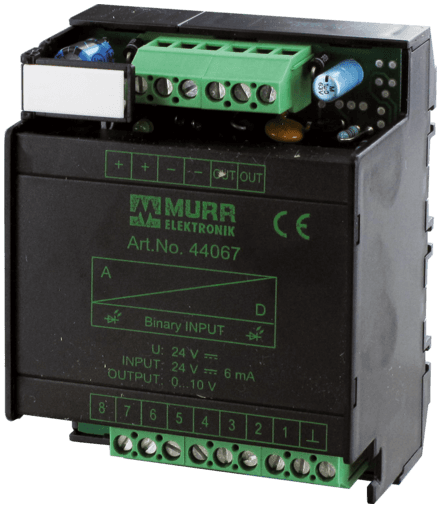

44067 Murr Elektronik Control Circuits

Product Details

• Weight
  146 g
• Series
  Interface Modules
• Product article number of manufacturer
  44067
• Input signal
  0...30 V DC (with LED display)
• Functional description
  The maximum output signal of converters with voltage output can be adjusted to the operating voltage minus 2 V. The outputs are short-circuit protected and overload protected due to internal current limiting.
• Input current
  max. 10 mA/Bit
• Dimensions H×W×D
  65×67.5×86 mm
• Operating voltage
  21...30 V DC, smoothed (with LED)
• Operating current
  100 mA (idle load), max. 150 mA (full load)
• Tolerance
  ±1%
• Release input E
  log 1 ≥ 16 V, log 0 ≤ 6 V
• Mounting method
  DIN-rail mountable (EN 60715)
• Temperature range
  0...+50 °C
• Output current
  max. 40 mA (0...10 V DC); max. 20 mA (0...20 mA), 4...20 mA
• Test isolation voltage
  2.5 kV
