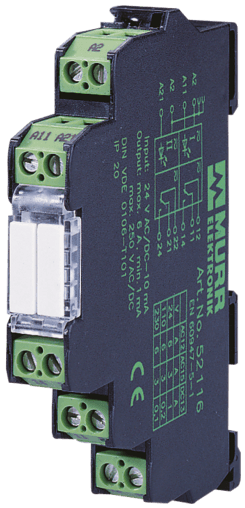

3000-62004-8200010 Murr Elektronik Control Circuits

Product Details

• Weight
  50 g
• Series
  Interface Modules
• Output current
  10 mA (short-circuit protected)
• Product article number of manufacturer
  3000-62004-8200010
• Output voltage
  0...10 V
• Functional description
  The module is designed to connect a potentiometer. The module's output voltage can be set from 0...10 V, independently of the measuring range of the potentiometer used. Even when the potentiometer is used to 50%, the output voltage can be covered in the c
• Type
  for 3-wire sensors or mechanical switches, NPN, (EN 61131-2)
• Sensor supply US
  12 V DC - 15 mA
• Connection
  Screw terminals
• Input resistor
  approx. 2.5 MΩ
• Protection
  IP20
• LED display
  LED (green): Power; LED (red): Error
• Linearity
  max. 0.3% from end value
• Current consumption
  max. 20 mA
• Operating voltage
  24 V DC (20...30 V DC)
• Mounting method
  DIN-rail mountable (EN 60715)
• Dimensions H×W×D
  90×12.4×70 mm
• Temperature range
  -25...+55 °C (storage temperature -30...+80 °C)
