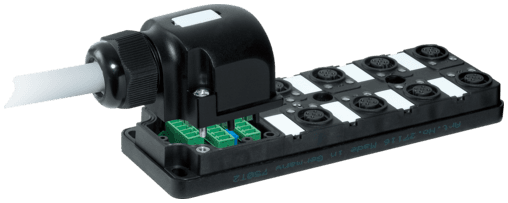

27081 Murr Elektronik I/O Distributors

Product Details

• Weight
  900 g
• Series
  Distribution Systems
• Jacket Color
  gray
• Material (jacket)
  PUR/PVC
• Product article number of manufacturer
  27081
• Bend radius (moving)
  12× outer Ø
• Bend radius (fixed)
  10× outer Ø
• Temperature range (fixed)
  -30...+80 °C
• Temperature range (mobile)
  -30...+80 °C
• Material (wire)
  Cu wire, bare
• Outer Ø
  12.5 mm ±5%
• Resistor (core)
  max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
• Cable number
  404
• C-track properties
  1.5 Mio.
• No./diameter of wires
  16× 0.34 + 5× 0.75 mm²
• Total current
  max. 2× 8 A
• Wire isolation
  PVC
• Housing
  Plastic, flame retardant
• Temperature range
  -20...+80 °C
• Signal per port
  2
Dimensions H×W×D
150×50.2×17 mm
Operating current per contact
max. 4 A
Material
PBT
Protection
IP65 and IP67 when plugged and screwed down (EN 60529)
Operating voltage
24 V DC ±25%

Related documents 27081 Specs
